RayHome

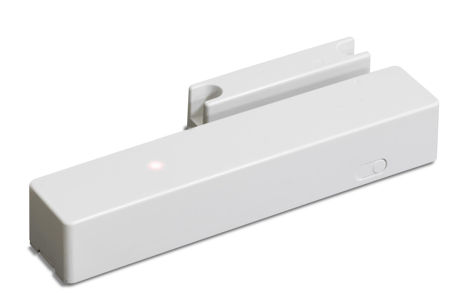

DOOR/WINDOW SENSOR
HT01-609I
Notification Sensor
HW: 1 FW: 1.00
ZM5202
6.61.00
0x0221 (545)
0x0003 (3)
0x0003 (3)
ZC10-16095235
2016-09-15 14:58:59.0752
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
DOOR/WINDOW SENSOR
Door / Window Open. Close monitoring function Case open , Battery level monitoring function LED function OTA
Z-Wave primary controller into inclusion mode. And press the inclusion/exclusion switch for sending NIF.
Z-Wave primary controller into exclusion mode. And press 3 times the inclusion/exclusion switch for sending NIF.
Case1. In the timeout-based scheme, the product is wakeup. Use 'wake up interval'. Case2. Physically scheme, include the product in a Z-Wave network, press the inclusion/exclusion switch for Wake Up Notification.
Held 10 seconds the inclusion/exclusion switch for sending Device Reset Locally Notification. And reset to the Factory default.
Support OTA Firmware update from controller. Use FIRMWARE_UPDATE_MD_V2_COMMAND_CLASS. To proceed the OTA process
| Type | Value(s) |
|---|
