Faultless
TPD Z-Wave
A15-WG014
Door Lock Keypad
255.1.66.1.1
ZM5202
6.51.07
0x0X26 (0)
0x0X03 (0)
0X0001 (1)
ZC10-16095240
2017-10-25 16:54:30.594152
N/A
Enhanced Slave
Listening Sleeping Slave
Yes
An electronic touchscreen deadbolt with Z-Wave.
Great Convenience 。Touch to activate, touch to lock 。Connect your Z-Wave smart home system and operate from anywhere 。Holds up to 25 user codes 。Holds up to 4 single-entry codes 。Vacation mode (deactivates all user codes temporarily) 。Auto-lock with adjustable delay (10 - 99 seconds) 。Back-up mechanical keyway Uncompromised Security 。ANSI Grade 2 quality – deadbolt operates over 150,000 times 。ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures 。4-digit random guiding code prevents code-probing 。Touch screen is temporarily disabled after 4 consecutive incorrect entries Easy Installation 。Easy installation with a Philips screwdriver 。Fits most standard door preparations 。Online video instruction available (please scan the QR code on this box)

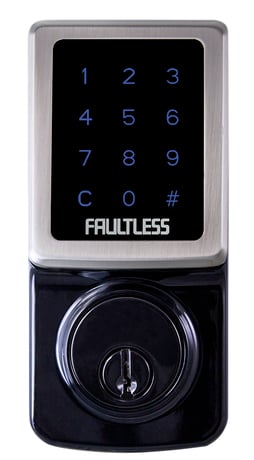

Product Picture
1. Press [SET] for 1 second 2. Enter 4-8 digits Programing Code 3. Press the buttons #90# 4. Include successfully (beep * 1)
1. Press [SET] for 1 second 2. Enter 4-8 digits Programing Code 3. Press the buttons #90# 4. Exclude successfully (beep * 1)
1. Remove one battery. 2. Press and hold SET button while inserting the battery back. Hold the set button until long beep has finished. 3. Resotring the lock to factory settings will remove its connection to your network and clear all devices from its assocation group. The reset procedure should only be used when the primary controller is missing or inoperable. 4. Please re-enter the default Programming Code to set up the lock after restoring to factory settings.
| Type | Value(s) |
|---|
