SAMSUNG SDS
SHP-DH520MK
SHP-DH520MK
Door Lock - Keypad
HW: 1 FW: 1.03
ZM5101
6.51.06
0x022E (558)
0x0001 (1)
0x0001 (1)
ZC10-16105270
2016-10-12 12:00:12.6208
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Samsung Handle Door Lock / Black
Touch Screen Type Handle Door Lock. The Samsung SDS Z-Wave Door Lock is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enable Z-Wave Plus products.

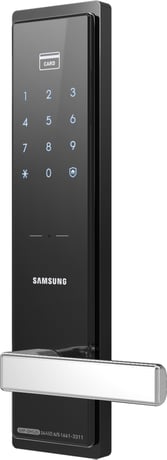

Product Picture
1 - Security Function
This value can be used when the device is connected with platform of Samsung SDS. This function is not related to Z-Wave CC. - 0x02 : Command for disable which is set by platform of Samsung SDS. After setting, if you try to get value of Security Function , '0x00' will be reported. - 0x03 : Command for enable which is set by platform of Samsung SDS. After setting, if you try to get value of Security Function, '0x01' will be reported. - 0x04 : 'Request for Enable' command which is reported by Doorlock. This cannot be set. (8th function in manual) - 0x05 : If the request for 'Request for Enable' command is failed in platform, this will be set by platform of Samsung SDS. Value of Security Function is not changed by this command.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable (Default) |
| 1 | 1 | Enable |
| 2 | 2 | System Disable |
| 3 | 3 | System Enable |
| 4 | 4 | Request for Enable |
| 5 | 5 | Fail |
2 - Privacy Mode
Privacy ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable (Default) |
| 0 | 1 | Enable |
3 - Registered User ID
This parameter is supported to ‘Configuration Get Command’ only.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 30 | The number of registered user codes. |
① Click [Add] icon in Z-Wave PC Controller Program. ② Press the [REG] button for 3 seconds. (Ding dong -> Ding ding) ③ Press the [*] button after pressing the [00[*] button. ( Success : Ding dong dang, Fail : Ding dong Ding dong )
After exclusion from Z-Wave Network, it will no longer be remotely-controlled via the controller. ① Click [Remove] icon in Z-Wave PC Controller Program. ② Press the [REG] button for 3 seconds. (Ding dong -> Ding ding) ③ Press the [*] button after pressing the [00] button. (Success : Ding dong dang, Fail : Ding dong Ding dong)
All registered Master/User data will be deleted, and Master PIN Code is set to ‘1234’. Also Z-Wave Door Lock will be removed from the network. ① Press the [REG] button for 3 seconds. (Ding dong -> Ding ding) ② Press the [*] button after pressing the [4560852580] button. (Success: Ding ding dang, Fail : Ding dong Ding dong) ※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Privacy Mode Function, Setting the Security Function, Lockout Mode, Intrusion Detection Function, Sound Setting
