show home
Smart Plug(built-in energy meter)
ZW38
On/Off Power Switch
1.1.2
ZM5202
6.51.06
0x015D (349)
0x1215 (4629)
0x261C (9756)
ZC10-17085720
2017-08-04 20:15:51.521446
N/A
Routing Slave
Always On Slave
Smart Plug with energy meter
This smart plug provides one Z-Wave outlet with power and send out the consumption data for remote controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control your device from your mobile phone devices. And get summary data for daily/month power or energy used for this load while installed an App on your mobile. Manual On/Off by push button on front. The outlet has maximum load for 600W Incandescent or 1200W resistive.

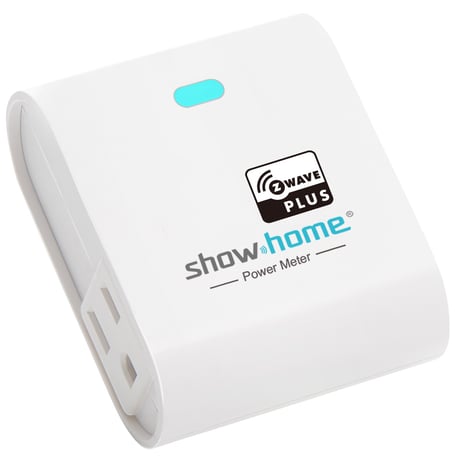

Product Picture
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the button to exclude it from the network.
1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press up and release the toggle to exclude it from the network. Note:
Press and hold the top button for at least 3 seconds while you plug the smart switch into a receptacle. ""Use this procedure only in the event that the network primary controller is missing or otherwise inoperable""
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
