show home
Motion Sensor
ZW112
Notification Sensor
HW: 1 FW: 20.15
ZM5202
6.51.06
0x015D (349)
0x2003 (8195)
0x701C (28700)
ZC10-16105259
2016-10-06 13:47:26.7452
N/A
Routing Slave
Reporting Sleeping Slave
Yes
motion Sensor to detect moving object
The Motion Sensor is designed to be used indoor or outdoor. When mounted properly it can monitor large or open areas such as entrances, living rooms, family rooms, driveways, backyards, walkways, workshops..etc. When the Sensor detects motion, it will transmit a signal to the controller.

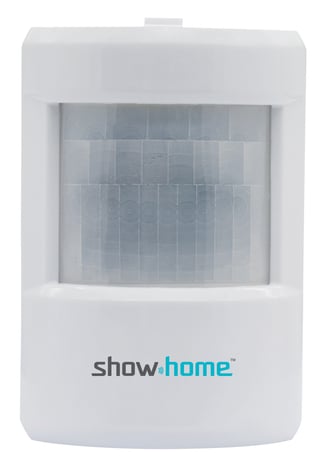

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, triple click Tamper switch to include it in the network.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, triple click Tamper switch to exclude it from the network.
The sensor was wake up when temper switch on or get triggered signal after mounted on site.
Press and hold Tamper switch for at least 3 seconds while you insert the battery. *Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
