show home
Door Window Sensor
ZW1101
Notification Sensor
1.20.15
ZM5202
6.51.06
0x015D (349)
0x2003 (8195)
0xB11C (45340)
ZC10-17035469
2016-10-06 13:58:42.428
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Door and Window sensor to monitoring On/Off the Door/window
This sensor monitors door/window and send Z-Wave™ signal when door or window is opened and closed.

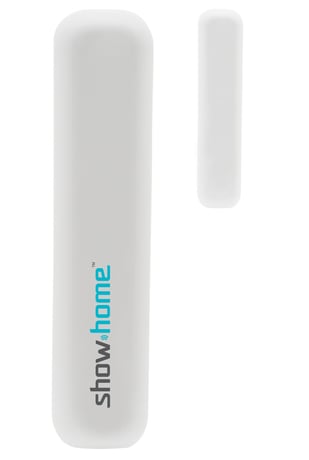

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, triple click the micro switch to include it in the network.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, triple click the micro switch to exclude it from the network.
The sensor was wake up when micro switch or magnetic sensor detect position changed after mounted on site.
Press and hold the micro switch for at least 3 seconds while you insert the battery to reset the device. *Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
