show home
Smoke Sensor
ZW1103
Notification Sensor
1.20.15
ZM5202
6.51.06
0x015D (349)
0x2003 (8195)
0xB31C (45852)
ZC10-17035470
2016-10-06 14:52:57.8828
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Smoke Sensor
The Smoke sensor is designed to used in areas where a fire generates smoke and detected in house, public building..etc. After mounted properly it can monitor whether the smoke generated in this area. When smoke is detected, the sensor will transmit a alarm signal to controller.

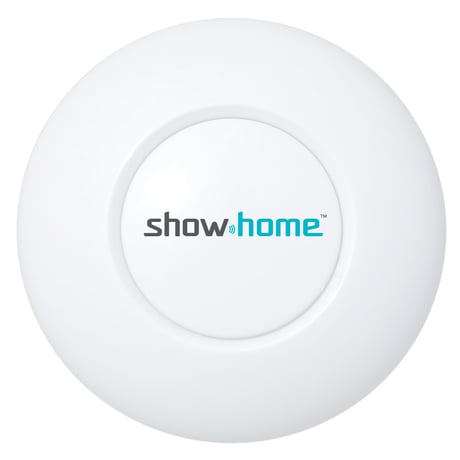

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, triple click the ADD Button to include it in the network.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, triple click the ADD Button to exclude it from the network.
The sensor was wake up when Test Button on or sensor detect smoke after mounted on site.
Press and hold ADD Button for at least 3 seconds while you insert the battery. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Smoke Density |
