D-Link Corporation

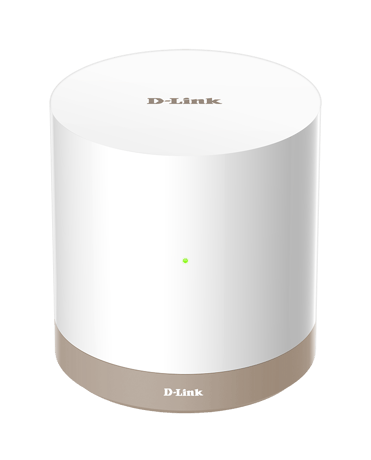

D-Link mydlink Connected Home Hub
DCH-G022
Gateway
HW: 1 FW: 4.24.02.21.05.01
SD3503
6.51.07
0x0108 (264)
0x0022 (34)
0x0003 (3)
ZC10-16115305
2016-11-08 17:35:25.906902
N/A
Bridge Controller
Central Static Controller
The DCH-G022 is a high performance and secure Connected Home Z-Wave gateway used to control a variety of Z-Wave home sensors to automate your home.
The DCH-G022 is a high performance and secure Connected Home Z-Wave gateway used to control a variety of Z-Wave home sensors to automate your home. The key features are listed below. 1. Easy to Install Simple to set up using the mydlink App for your tablelet and smart phone. Uses D-Link proprietary protocol for easier communication with all your mydlink home devices. 2. Wireless 802.11 Wi-Fi 3. Z-Wave Plus Z-Wave 500 series chip Speed up to 100kbps 4. Security AES 128 bit encryption for Z-Wave WPA/WPA 2 encryption for Wi-Fi
Press the [Learn Mode] button on GUI.
This is not a battery device, always in awake state.
Press and hold the “Reset button” for 5 seconds on DCH-G022 If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
This process (also known as ""Add/Adding"") is achieved by pressing “Wireless button” on DCH-G022 or pushing the [Include NEW Device] button on GUI being into the inclusion mode.
This process is achieved by holding “Wireless button” for 5 seconds on DCH-G022 or pushing the [Exclude Device] button on GUI being into the exclusion mode.
