Zooz
Zooz Z-Wave Plus Toggle Dimmer Switch
ZEN24
Light Dimmer Switch
HW: 1 FW: 20.15
ZM5202
6.51.07
0x015D (349)
0x0111 (273)
0x261C (9756)
ZC10-16115308
2016-11-05 01:22:44.79464
N/A
Routing Slave
Always On Slave
Replace a classic dimmer switch with this smart Z-Wave Plus ZEN24 equivalent and control lighting, adjust brightness, or recreate settings remotely.
FEATURES - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs (20 Watts minimum required) - Based on universal command classes - supported by most Z-Wave controllers - May be associated and grouped with other Z-Wave devices for advanced home automation - Air-gap switch to power the dimmer off when changing light bulbs - Built-in Z-Wave signal repeater for a stronger and more reliable network SPECIFICATIONS Model Number: ZEN24 Z-Wave Signal Frequency: 908.42 MHz Power: 120 VAC, 60 Hz Maximum Loads: 600W Single-gang, 500W Double-gang, 400W Triple-gang Incandescent, 150W CFL or LED Minimum Load: 20W for LED and CFL bulbs Range: Up to 100 feet line of sight Operating Temperature: 32-104° F (0-40° C) Installation and Use: Indoor only

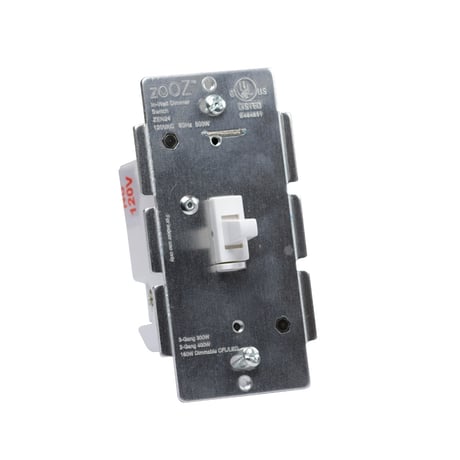

Product Picture
1 - Toggle Control
Use it to change between 2 control modes. Mode 1 will turn the light on when you toggle the switch up, and turn it off when you toggle the switch down. Mode 2 will turn the light on when you toggle the switch down, and turn it off when you toggle the switch up.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Mode 1 (up for on, down for off) |
| 1 | 1 | Mode 2 (down for on, up for off) |
1. Bring your Z-Wave gateway hub or controller within direct range of the switch 2. Put your Z-Wave controller in inclusion mode 3. Toggle the switch up and down quickly 3 times to finalize the inclusion process 4. A new dimmer switch should appear on your controller's device list Troubleshooting Tips: If you are unable to include the Toggle Dimmer to your controller, please try one of the following: - Bring the controller closer to your Z-Wave switch or use a hand-held secondary controller for inclusion - Toggle your Z-Wave switch quicker 4 or 5 times once you put the controller in the inclusion mode to ensure the command has gone through - Put your controller in the EXCLUSION mode and toggle the switch quickly 3 times, then try adding it to your network again
1. Bring your Z-Wave gateway hub or controller within direct range of the switch 2. Put your Z-Wave controller in exclusion mode 3. Toggle the switch up and down quickly 3 times to complete the exclusion process 4. The device should disappear from your controller's device list Please repeat the process following all steps carefully if the first attempt is unsuccessful
The Toggle Dimmer will be reset to factory defaults only by exclusion using a Z-Wave controller. You may use any certified Z-Wave controller to exclude and reset the switch. This device may not be reset manually when the network’s primary controller is missing or otherwise inoperable. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
| Type | Value(s) |
|---|
