Climax Technology
Motion Sensor
IRP-16SL-ZW
Notification Sensor
HW: 1 FW: 1.03:01.02
ZM5202
6.51.09
0x018E (398)
0x0001 (1)
0x0002 (2)
ZC10-16115317
2016-11-28 16:50:04.250029
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The IRP-16SL ZW is a Z-Wave motion detector that senses and reports suspicious movements to a security or home automation system. This microprocessor-controlled sensor adopts Adaptive Digital Signal Processing (ADSP) algorithms to deliver sensitive and reliable detection. It provides pet immunity up to 27 kilos (59 lbs) to eliminate false alarms caused by animals.
The IRP-16SL ZW is a Z-Wave motion detector that senses and reports suspicious movements to a security or home automation system. This microprocessor-controlled sensor adopts Adaptive Digital Signal Processing (ADSP) algorithms to deliver sensitive and reliable detection. It provides pet immunity up to 27 kilos (59 lbs) to eliminate false alarms caused by animals. The lithium battery-powered IRP-16SL ZW features long battery life of three years. Compatible with any Z-Wave mesh networks and devices, the IRP-16SL ZW can be flexibly incorporated into Z-Wave enabled systems for residential or commercial applications.

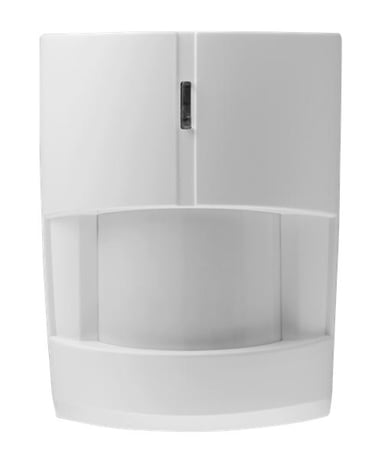

Product Picture
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. - Pull out the battery Insulator steadily. - The LED indicator will flash for 30 seconds (The PIR is warming up). During the warm up period, the PIR will not be activated. It is recommended that you stay away from the detection area during this time. After the warming period is over, the LED will turn off and the PIR will be ready for operation. - Put the Z-Wave control panel into Inclusion mode (please refer to the Z-Wave control panel manual). - Within 1.5 seconds, press the Function Button 3 times. - Refer to the operation manual of the Z-Wave gateway or control panel to complete the adding process. - Please press and release the Tamper Switch once after inclusion is completed to ensure the Gateway/Control Panel recognizes the current Tamper condition. - If the device has already been added (included) into another Z-Wave Gateway/Control Panel, or if the device is unable to be added into the current Z-Wave Gateway/Control Panel, try removing it first (see Removing Device).
The device must be removed from existing Z-Wave network before being added into another. Exclusion Mode - Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave or control panel manual). - Within 1.5 seconds, press the Function Button 3 times and the device will be removed from the Z-Wave network.
This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered PIR to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up interval time period is programmed automatically according to Control Panel’s setting when The PIR is included. The recommended setting of the interval time is between 30 to 60 minutes.
Factory Reset Factory resetting the device will restore it to factory default settings (i.e. not included into any Z-Wave network). Please only use this procedure if the Z-Wave gateway or control panel is lost or otherwise inoperable. - Press and hold the Function Button of the device for 12 seconds to factory reset.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
