Popp
Outdoor Solar Siren
POPE005107
Siren
HW: 1 FW: 1.01
ZM5202
6.51.06
0x0154 (340)
0x0004 (4)
0x0002 (2)
ZC10-16125334
2016-12-07 20:26:56.067955
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Outdoor Solar operated Siren
This solar powered outdoor siren can be used without any additional power supply or batteries. It can be installed on any place on the outside of the house and can be controlled using Z-Wave. The device will issue a very loud sound (105 dBm) and in parallel some stroboscope light as well. The siren is self-protecting. Removing the main device from the mounting unit immediately starts the siren and also reports the tamper attempt to the Z-Wave central controller. All communication between the Z-Wave controller and the siren is encrypted and secured to protect against manipulation. Thanks to the large solar panel the siren can be mounted on nearly every place outside the house, with direct or indirect sun light. The siren is maintenance-free and water-proofed (IP56). The average solar energy of one day keeps the device alive for up to 50 days (without using the siren). Additionally an internal temperature sensor reports the temperature inside the siren’s enclosure.

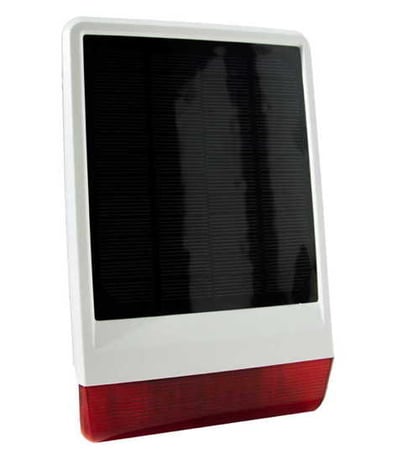

Product Picture
1 - Siren Tamper Mode
Sets the tamper triggering mode when removed from the holderSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Triggers automatically when it is removed from the holder. Must be turned off, using the button or from the controller |
| 1 | 1 | Triggers automatically when it is removed from the holder and turns off, when placed back on the holder |
| 2 | 2 | Does not trigger at all, when removed from the holder. Service Mode |
2 - Temperature Adjustment
Temperature correction. The given value changes the displayed temperature by 0.1KSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 127 | + 0.1 K |
| -1 | -127 | - 0.1 K |
3 - Send unsolicited Temperature Report
Temperature Threshold to send unsolicited Temperature UpdateSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | * 0.1 K |
4 - Send unsolicited Temperature Report periodically
If the value is set, after N wake up number (measurement is every 4 minutes) the temperature report will be sent. By default it is 15 = every 1 hourSize: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 32676 | * 4 Minutes |
5 - Siren Mode
Determines how the Siren shall react on alarmSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Siren Only |
| 1 | 1 | Flash Only |
| 2 | 2 | Flash Plus Siren |
6 - Auto Off
If the value is set, the siren will be switched off automatically after a defined alarm time in Minutes.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Auto Off |
| 1 | 127 | after X Minutes |
1. Open the case and turn on the power switch 2. Remove the metal mounting plate from the device. 3. Turn your controller into inclusion mode with a short single click on the internal inclusion button.
1. Open the case and turn on the power switch 2. Remove the metal mounting plate from the device. 3. Turn your controller into exclusion mode with a short single click on the internal inclusion button.
This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable. To reset the device keep the inclusion button pushed for 10 seconds. After 5 seconds the LED starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
