Popp
Smoke Detector and Siren
POPE004001
Notification Sensor
HW: 1 FW: 1.00
ZM5202
6.51.06
0x0154 (340)
0x0100 (256)
0x0201 (513)
ZC10-16125371
2016-12-23 20:42:44.227377
N/A
Enhanced Slave
Listening Sleeping Slave
Yes
EN 14604 certified Smoke Detector with built in Z-Wave controllable siren function
This products consists of a standard photo electric Smoke detector with a pluggable Z-Wave wireless interface module. The Smoke detector will also work as a stand alone product and is certified according to EN 14604. The smoke chamber of the detector has a stainless steel reel with antistatic plastic chamber. A button allows on-device test of smoke chamber, electronics and battery. The device also offers a built-in self test and an electronic smoke chamber test to avoid the use of test aerosol. A low battery warning will last for 30 days but full function of the detector is guaranteed during this time. The Z-Wave module allows to report the smoke and low battery alarm wirelessly to a central controller. The detector can also be used as a wireless siren for alarm system or other applications. The wireless module is operated by the 9V battery of the smoke detector. An optional external power supply allows external powering the unit. According to VdS 3515 (Smoke Detectors with Wireless Communication) this device will send alarm signals to all other smoke detectors registered in association group 2 to turn on their siren. This function ensures that all smoke detectors will issue noise if one of them detected a smoke.

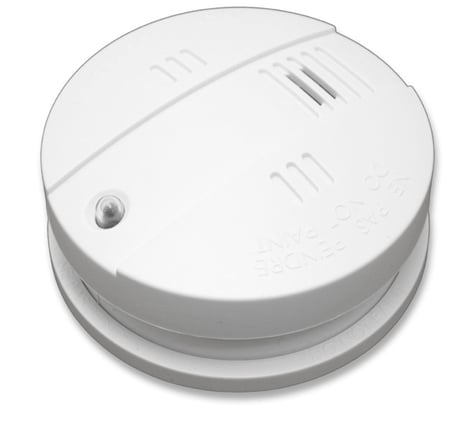

Product Picture
View configuration parameters (4)
1 - Siren alarm sequence interval
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the interval in seconds.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | seconds |
2 - Siren alarm tone length
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the sound versus silence within this interval.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | seconds |
3 - Value of BASIC On-Command
This defines what command is sent into association group 2Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | BASIC Command Value |
4 - Value of BASIC Off-Command
This defines what command is sent into association group 2Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | BASIC Command Value |
Operating instructions (3)
To Include, hit the little button on the wireless module for 1 second
To Exclude, hit the little button on the wireless module for 1 second
To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | POPE004001_en.pdf |
Features (2)
| Type | Value(s) |
|---|
