LG Uplus
IoT Hub
GWG-02
Central Controller
HW: 1 FW: 39.46:35.66
ZM5101
6.51.08
0x018B (395)
0x0002 (2)
0x0001 (1)
ZC10-16125362
2016-12-17 19:11:20.855052
N/A
Static Controller
Central Static Controller
Universal Controller for controlling Notification Sensors, On/Off Switches, Valves, Open/Closed and Door Lock products.
LGUplus IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of notification sensor, On/Off switch, Valve, Open/Closed and Door Lock products made for LGUplus. Other products made as general Z-Wave plus standard can be controlled with limited function. This is USB dongle type connected to LGUplus Home Gateway.

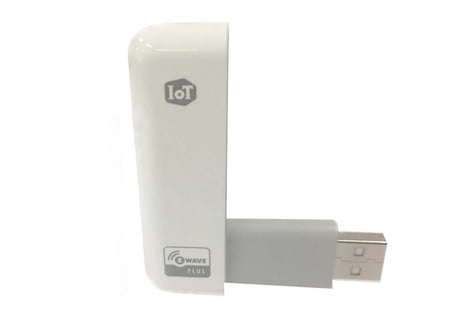

Product Picture
- To enter Learn Mode : Run ‘LearnMode’ in Setting, then click YES.
- Run ‘ZW_SET_DEFAULT’ in Setting, then click YES of UZB PoP UP - Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
- To Add : Run ‘Inclusion’ in Setting, then click YES of Inclusion PoP UP and then run inclusion of Slave device.
- To Delete : Run ‘Exclusion’ in Setting, then click YES of Exclusion PoP UP and then run exclusion of Slave device.
| Type | Value(s) |
|---|
