Qubino Flush Dimmer
ZMNHDD2
Light Dimmer Switch
HW: 3 FW: 3.03:03.03
ZM5202
6.51.07
0x0159 (345)
0x0001 (1)
0x0051 (81)
ZC10-16125357
2016-12-20 15:18:41.760893
N/A
Enhanced 232 Slave
Always On Slave
Used for light dimming or managing fan speed.
This Z-Wave module is used for dimming the bulb or to manage the speed of a fan. The module can be controlled either through a Z-Wave network or through the wall switch. The module is designed to be mounted inside a “flush mounting box”, hidden behind a traditional wall switch. Module measures power consumption of bulb or fan and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-wave network.

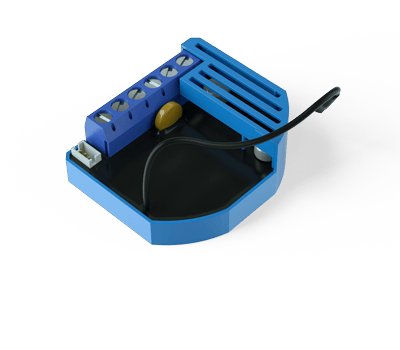

Product Picture
1 - Input 1 switch type
Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero • 1 - bi-stable switch type NOTE: Switch connected to S1 terminal is a master switch. It activates the basic functionality of the DimmerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero. |
2 - Input 2 switch type
Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero • 1 - bi-stable switch type NOTE: to enable this function, Parameter 20 or Parameter 100 has to be set.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero. |
| 1 | 1 | Bi-stable switch type. |
3 - Input 2 contact type
Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - NO (normally open) input type • 1 - NC (normally close) input typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | NO (normally open) input type. |
| 1 | 1 | NC (normally close) input type. |
4 - Input 3 contact type
Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - NO (normally open) input type • 1 - NC (normally close) input typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | NO (normally open) input type. |
| 1 | 1 | NC (normally close) input type. |
10 - Activate / deactivate functions ALL ON / ALL OFF
Available config. parameters (data type is 2 Byte DEC): • default value 255 • 255 - ALL ON active, ALL OFF active. • 0 - ALL ON is not active, ALL OFF is not active • 1 - ALL ON is not active, ALL OFF active • 2 - ALL ON active, ALL OFF is not active Flush Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | ALL ON active, ALL OFF active. |
| 0 | 0 | ALL ON is not active, ALL OFF is not active. |
| 1 | 1 | ALL ON is not active, ALL OFF active. |
| 2 | 2 | ALL ON active, ALL OFF is not active. |
11 - Automatic turning off output after set time
Available config. parameters (data type is 2 Byte DEC): • default value 0 • 0 - Auto OFF disabled • 1 - 32536 = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto OFF disabled. |
| 1 | 32536 | 1 second - 32536 seconds Auto OFF enabled with define time, step is 1 second. |
12 - Automatic turning on output after set time
Available config. parameters (data type is 2 Byte DEC): • default value 0 • 0 - Auto ON disabled • 1 - 32535 = 1second - 32535 seconds Auto ON enabled with define time, step is 1 second.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto ON disabled. |
| 1 | 32535 | 1 second - 32535 seconds Auto ON enabled with define time, step is 1 second. |
20 - Enable/Disable Additional Switch
Dimming is done by push button or switch connected to I1 (by default). Enabling additional switch, dimming can be controlled by push button or switch connected to I1 and I2. Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - single push button (connected to I1) • 1 - additional switch (connected to I1 and I2)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Single push button (connected to I1). |
| 1 | 1 | Additional switch (connected to I1 and I2) |
21 - Enable/Disable Double click function
If Double click function is enabled, a fast double click on the push button will set dimming power at maximum dimming value. Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - double click disabled • 1 - double click enabledSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Double click disabled. |
| 1 | 1 | Double click enabled. |
30 - Saving the state of the device after a power failure
Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - Flush Dimmer module saves its state before power failure (it returns to the last position saved before a power failure). • 1 - Flush Dimmer module does not save the state after a power failure, it returns to "off" position.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Flush Dimmer module saves its state before power failure (it returns to the last position saved before a power failure). |
| 1 | 1 | Flush Dimmer module does not save the state after a power failure, it returns to "off" position. |
40 - Power reporting in Watts on power change
Set value means percentage, set value from 0 - 100=0% - 100%. Available configuration parameters (data type is 1 Byte DEC): • default value 5 • 0 - reporting disabled • 1 - 100 = 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled. |
| 1 | 100 | 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. |
42 - Power reporting in Watts by time interval
Set value means time interval (0 - 32767) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 0 • 0 - reporting disabled • 1 - 32767 = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled. |
| 1 | 32767 | 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value. |
60 - Minimum dimming value
Available config. parameters (data type is 1 Byte DEC): • default value 1 = 1% (minimum dimming value) • 1- 98 = 1% - 98%, step is 1%. Minimum dimming values is set by entered value. NOTE: The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1% (minimum dimming value) |
| 1 | 98 | 1% - 98%, step is 1%. Minimum dimming values is set by entered value. |
61 - Maximum dimming value
Available config. parameters (data type is 1 Byte DEC): • default value 99 = 99% (Maximum dimming value) • 2- 99 = 2% - 99%, step is 1%. Maximum dimming values is set by entered value. NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 99 | 99 | 99% (Maximum dimming value). |
| 2 | 99 | 2% - 99%, step is 1%. Maximum dimming values is set by entered value. |
65 - Dimming time (soft on/off)
Set value means time of moving the Dimmer between min. and max. dimming values by short press of push button I1 or controlled through UI (BasicSet). Available configuration parameters (data type is 2 Byte DEC): • default value 100 = 1s • 50 - 255 = 500 mseconds - 2550 mseconds (2,55s), step is 10 msecondsSize: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 100 | 100 | 1s |
| 50 | 255 | 00 mseconds - 2550 mseconds (2,55s), step is 10 mseconds. |
66 - Dimming time when key pressed
Time of moving the Dimmer between min. and max dimming values by continues hold of push button I1 or associated device. Available configuration parameters (data type is 2 Byte DEC): • default value 3 = 3s • 1- 255 = 1 second – 255 secondsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 3 | 3s |
| 1 | 255 | 1 second – 255 seconds |
67 - Ignore start level
This parameter is used with association group 3. A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1. Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - respect start level • 1 - ignore start levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Respect start level. |
| 1 | 1 | Ignore start level. |
68 - Dimming duration
This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value. Available configuration parameters (data type is 1 Byte DEC): • default value 0 (dimming duration according to parameter 66) • 1 - 127 (from 1 to 127 seconds)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dimming duration according to parameter 66. |
| 1 | 127 | From 1 to 127 seconds. |
100 - Enable / Disable Endpoints I2 or select Notification Type and Event
Enabling I2 means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I2 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Endpoint, I2 disabled. |
| 1 | 1 | Home Security; Motion Detection, unknown loc. |
| 2 | 2 | CO; Carbon Monoxide detected, unknown loc. |
| 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. |
| 4 | 4 | Water Alarm; Water Leak detected, unknown loc. |
| 5 | 5 | Heat Alarm; Overheat detected, unknown loc. |
| 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. |
| 9 | 9 | Sensor binary. |
101 - Enable / Disable Endpoints I3 or select Notification Type and Event
Enabling I3 means that Endpoint (I3) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Endpoint, I3 disabled. |
| 1 | 1 | Home Security; Motion Detection, unknown loc. |
| 2 | 2 | CO; Carbon Monoxide detected, unknown loc.. |
| 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. |
| 4 | 4 | Water Alarm; Water Leak detected, unknown loc. |
| 5 | 5 | Heat Alarm; Overheat detected, unknown loc. |
| 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. |
| 9 | 9 | Sensor binary. |
110 - Temperature sensor offset settings
Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value 32536 • 32536 - offset is 0.0°C • From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. • From 1001 to 1100 - value from -0.1°C to -10.0°C is subtracted to actual measured temperature.Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 32536 | 32536 | Offset is 0.0 °C |
| 1 | 100 | Value from 0.1 °C to 10.0 °C is added to actual measured temperature. |
| 1001 | 1100 | value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.alue from -0.1 °C to -10.0 °C is subtracted to actual measured temperature. |
120 - Temperature sensor reporting
If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 - reporting disabled • 1 - 127 = 0,1°C - 12,7°C, step is 0,1°CSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 5 | 0,5°C change. |
| 0 | 0 | Reporting disabled. |
| 1 | 127 | 0,1°C - 12,7°C, step is 0,1°C. |
250 - Unsecure / Secure Inclusion
Available configuration parameter (data type is 1 Byte Dec): • default Value 0 • 0 – Unsecure Inclusion • 1 – Secure Inclusion A Flush dimmer supports secure and unsecure inclusion. Even if the controller does not support security command classes, a dimmer could be included as unsecure and keep all the functionality.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unsecure Inclusion. |
| 1 | 1 | Secure Inclusion. |
• Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 2 minutes after connected to power supply) or • press push button I1 three times within 3s (3 times change switch state within 3 seconds) or • press service button S (only applicable for 24 V SELV supply voltage) for more than 2 second. NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
• Connect module to power supply • bring module within maximum 1 meter (3feet) of the main controller, • enable add/remove mode on main controller, • press push button I1 five times within 3s ( 5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. By this function all parameters of the module are set to default values and own ID is deleted. If push button I1 is pressed three times within 3s (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values. NOTE: If the module is included with parameters 100 or 101 with values different to default and module reset is done, wait at least 30s before next inclusion
• press push button I1 five times within 3s ( 5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. Please use reset procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Meter type |
|---|
| Electric Meter Consumption |
