Jasco Products Company
In-Wall Smart Toggle Dimmer
14322/ZW3004
Light Dimmer Switch
HW: 255 FW: 5.20
ZM5202
6.51.08
0x0063 (99)
0x4944 (18756)
0x3137 (12599)
ZC10-16125348
2016-12-15 16:54:01.897676
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave In-Wall Smart Toggle Dimmer.
Transform any home into a smart home with the Jasco Z-Wave In-Wall Smart Toggle Dimmer. The dimmer enables wireless control of on/off and dim functions of hard-wired dimmable LED/CFL and incandescent lighting. The dimmer replaces your current light switch, uses your existing wiring, and provides Z-Wave wireless and in-wall control of overhead lighting. Use the dimmer feature to customize the lighting output and create the perfect ambiance for any room. Providing ultimate flexibility, the In-Wall Smart Dimmer allows you to operate the switch by itself or easily integrate the switch three-way or four-way wiring configurations by adding the Jasco Add-On Switch. Single Pole wiring configuration controls the light from one location. Three-way wiring configuration controls the light from two separate locations. Four-way wiring configuration controls the light from three separate locations. The Jasco Add-On Switch is required for three-way or four-way installations. Take control of your home lighting with Jasco Z-Wave Wireless Lighting Controls!

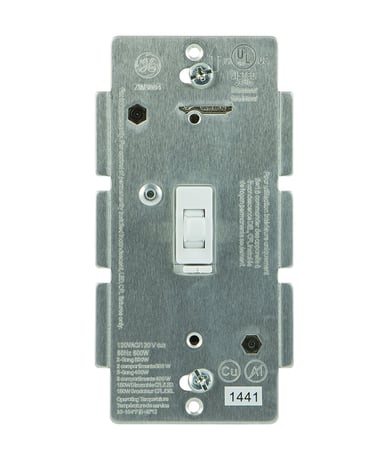

Product Picture
4 - Invert Switch
Invert SwitchSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | Invert |
7 - Dim Rate Adjustments
Dim Rate AdjustmentsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of steps or levels |
8 - Dim Rate Adjustments
Dim Rate AdjusmentsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of steps or levels |
9 - Dim Rate Adjustments
Dim Rate AdjustmentsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of steps or levels |
10 - Dim Rate Adjustments
Dim Rate AdjustmentsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of steps |
11 - Dim Rate Adjustments
Dim Rate AdjustmentsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of steps or levels |
12 - Dim Rate Adjustments
Dim Rate AdjustmentsSize: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of steps or levels |
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the wireless smart dimmer (rocker) to include it in the network.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart dimmer (rocker) to exclude it from the network.
1. Quickly press ON (up) button (3) times then immediately press the OFF (down) button (3) times. Note: This should only be used in the even your network's primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
