Brand

Aeotec

Name

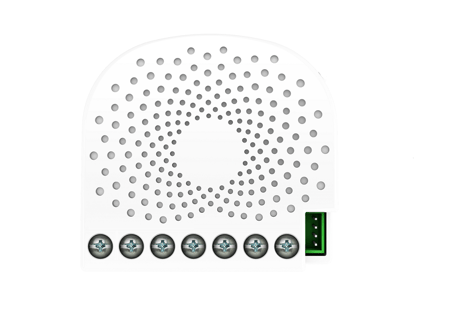

Dual Nano Switch

Part number

ZW132-C

Device type

On/Off Power Switch

Description

Aeotec Dual Nano Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches also provides energy metering.

Description long

Aeotec Dual Nano Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Dual Nano Switch. The Dual Nano Switch is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.

Z-Wave Features

Categories (3)

All Lighting Devices

Energy Meters

On/Off Switches/Devices

Z-Wave Chip Series

500

Region (1)

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

3 - Current Overload Protection.

Output Load will be turned off automatically after 30 seconds and if the current overrun 1.5A.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable

4 - Overheat protection.

Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable

20 - Configure the output status after re-power on it.

Configure the output status after re-power on it.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
2	2	Always off
1	1	Always on
0	0	Last status

80 - To set which notification would be sent to the associated devices (Group 1)

To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmer’s load is changed.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Hail CC
2	2	Send Basic CC report
3	3	Send Hail CC when using the manual switch to change the load state.

81 - To set which notification would be sent to the associated nodes in association group 3

To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Basic Set CC

82 - To set which notification would be sent to the associated nodes in association group 4

To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Basic Set CC

83 - Configure the state of LED when it is in 3 modes

Configure the state of LED when it is in 3 modes (Energy mode, Momentary indicate mode, Night light mode)

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
2	2	Night light mode. The LED will remain ON state.
0	0	Energy mode. The LED will follow the status (on/off).
1	1	Momentary indicate mode. When the state of Switch’s load changed, the LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action.

84 - Set the ON/OFF time of the LED when it is in Night light mode.

Set the ON/OFF time of the LED when it is in Night light mode.

Size: 1 byte

Default: 301991936

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	60	The minute time of OFF
256	316	The hour time of OFF
65536	65596	The minute time of ON
16777216	16777276	The hour time of ON

86 - Set appointment 1

Set the ON time of output load.

Size: 4 bytes

Default: 8327680

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
256	316	The hour value of ON time
16777215	16777215	Disable the setting.
0	60	The minute value of ON time
65536	65543	The day value (Mon to Sun)
16777216	16777216	Enable the setting.

87 - Set appointment 2

Set the OFF time of output load.

Size: 4 bytes

Default: 8327680

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
256	316	The hour value of ON time
65536	65543	The day value (Mon to Sun)
16777215	16777215	Disable the setting.
0	60	The minute value of ON time
16777216	16777216	Enable the setting.

90 - Enables/disables parameter 91 and 92 below:

Enables/disables the function of parameter 91 and 92.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable

91 - Set the threshold value of wattage.

Threshold change in wattage (in terms of wattage) to induce an automatic report.

Size: 2 bytes

Default: 25

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	60000	The thershold value range is 0 to 60000

92 - Set the threshold value of wattage.

Threshold change in wattage (in terms of percentage) to induce an automatic report.

Size: 1 byte

Default: 5

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	100	The thershold value range is 0 to 100

100 - Set parameter 101-103 to default value.

Set parameter 101-103 to default value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset the parameter 101-103

101 - To set which reports need to be sent in Report group 1.

To set which reports need to be sent in Report group 1.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
4	4	Send Meter Report of voltage (V)
2	2	Send Meter Report of wattage (W)
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
8	8	Send Meter Report of current (A)
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
1	1	Send Meter Report of energy (kWh)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1

102 - To set which reports need to be sent in Report group 2.

To set which reports need to be sent in Report group 2.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Send Meter Report of energy (kWh)
2	2	Send Meter Report of wattage (W)
4	4	Send Meter Report of voltage (V)
8	8	Send Meter Report of current (A)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2

103 - To set which reports need to be sent in Report group 3.

To set which reports need to be sent in Report group 3.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2

110 - Set parameter 111-113 to default value.

Set parameter 111-113 to default value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset the parameter 111-113

111 - Set the interval of automatic report for Report group 1.

Set the interval of automatic report for Report group 1.

Size: 4 bytes

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

112 - Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 2.

Size: 4 bytes

Default: 600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

113 - Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 3.

Size: 4 bytes

Default: 600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

120 - Configure the external switch mode for S1.

Configure the external switch mode for S1.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

121 - Configure the external switch mode for S2.

Configure the external switch mode for S2.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode
0	0	Enter automatic identification mode

122 - Set the control destination for external switch

Set the control destination for external switch

Size: 1 byte

Default: 3

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	control the output loads of itself.
2	2	control the other nodes
3	3	control the output loads of itself and other nodes.

252 - Lock/unlock configuration parameters

Lock/unlock configuration parameters.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Unlock
1	1	Lock

255 - Reset the Dual Nano Switch

Reset the Dual Nano Switch to factory default.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset all configuration parameters to factory default setting
1431655765	1431655765	Reset to factory default setting and removed from the z-wave network

Type	Name
Product or Owner's Manual	Dual Nano Switch manual.pdf

Meter type
Electric Meter Consumption
