Enerwave Green Automation
Z-Wave Magnetic Door/Window Sensor
ZWN-BDS
Notification Sensor
HW: 1 FW: 5.10
ZM5202
6.51.09
0x011A (282)
0x0601 (1537)
0x0903 (2307)
ZC10-17015413
2017-01-13 18:42:20.259483
N/A
Routing Slave, No FLiRS, No MR
Reporting Sleeping Slave
Yes
The ZWN-BDS is a Z-Wave Magnetic Door/Window Sensor
The ZWN-BDS is a battery-powered and magnetic contact sensor that indirectly controls lights and appliances throughout your house. It is fully compatible with other Z-Wave certified device from other manufacturers and/or other applications. When magnetic contact is broken, such as a door or window being opened, the ZWN-BDS transmits Open/Close status to the gateway.

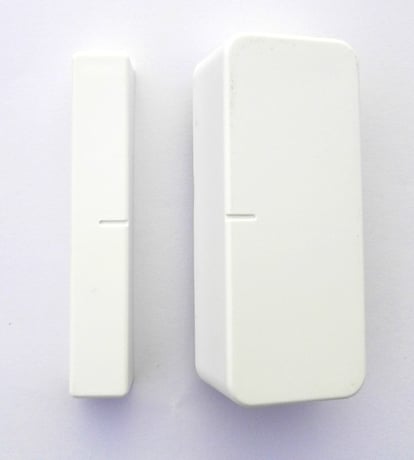

Product Picture
1. When the primary controller is in the adding mode, flick the paddle 3 times in the 1.5 second. The primary controller will verify the adding.
2. When the primary controller is in the removing mode, flick the paddle 3 times in the 1.5 second. The primary controller will verify removing, remove the module from the current Z-Wave network.
3. Short press the program button of ZWN-BDS ,that will send a wake up notification.
4. Flick the program button 3 times in the 1.5 second then press once notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
