QUBINO
Qubino Flush RGBW Dimmer
ZMNHWD1
Light Dimmer Switch
HW: 255 FW: 2.07
ZM5101
6.51.06
0x0159 (345)
0x0001 (1)
0x0054 (84)
ZC10-17015398
2017-01-20 18:06:59.917095
N/A
Enhanced 232 Slave
Always On Slave
Qubino Flush RGBW Dimmer
Qubino Flush RGBW module is used to control RGB/RGBW strips and LED strips or bulbs to create countless colour options and has 5 special scene effects. It can also control halogen lights and fans. Its extremely small size allows for easy installation behind wall sockets and switches. Controlled devices may be powered by 12 or 24 VDC. All IN and OUT terminals may be user configured for LED control or 100 kΩ signal readouts.

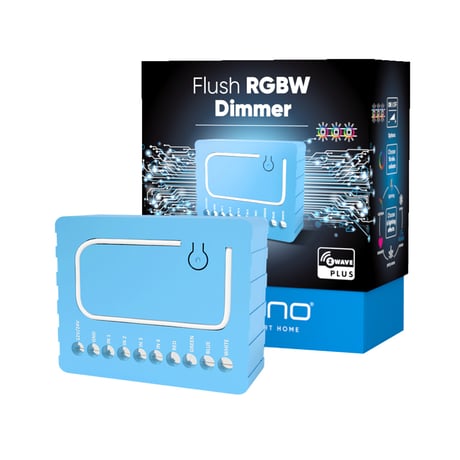

Product Picture
1 - Input switch type
*.default value 1 *. 1-bi-stable switch type *. 2-mono stable(Push button)switch typeSize: 1 byte
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 2 | switch type |
2 - Switch mode
*.default value 1 *. 1-Normal Mode *. 2-Brightness Mode *. 3-Rainbow ModeSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Switch mode |
3 - Auto Scene Mode set
*.default value 1-Ocean 2-lightning 3-Rainbow Mode 4-Snow 5-SunSize: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 5 | Auto Scene Mode set |
4 - Auto scene duration
* default value 3 * 1-127 delay duration is from 1s to 127s * -128~-1 delay duration is from 1 min. to 127min.Size: 1 byte
Default: 3
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | duration is from 1s to 127s |
| -128 | -1 | duration is from 1 min. to 127min. |
Include the R.G.B.W. color LED Dimmer intor the Z-Wave network, press service button 3 times in 2 seconds.If the device is properly include the green light will remains on.
Exclude the Flush RGBW Dimmer into Z-Wave network, press 3 times in 2 seconds.If the device is proporly excluded, the green light will blink and data will bereset to the factory default values.
Please note that re-including the proudct will reset the data to the default values. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
