GE
Portable Smart Multi Sensor
35211/ZW6302B
Notification Sensor
HW: 255 FW: 5.21
ZM5101
6.51.07
0x0063 (99)
0x4953 (18771)
0x3033 (12339)
ZC10-17015409
2017-01-29 21:13:20.172226
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Make the move toward convenience with the Z-Wave Portable Smart Motion Sensor for your home.
Make the move toward convenience with the Z-Wave Portable Smart Motion Sensor for your home. This Z-Wave compatible device boosts the safety and intelligence of your home by working with your home’s gateway to wirelessly trigger scenes and send alerts to your smartphone or tablet whenever motion, light or temperature change is detected. The discreet, versatile design of the sensor makes it suitable for any indoor space, with a detection range up to 180 degrees and up to 45 feet away. Depending on your room size, the sensor also offers three different motion-detecting sensitivity levels: low, medium and high. The sensor sits perfectly on a shelf, table, counter or desk, and can also be mounted to wall or ceiling by using the included mounting hardware. This sensor can be powered with the included batteries (up to two years of battery life) or via Micro USB cable (sold separately). Smart controls require a standalone Z-Wave remote or supported Z-Wave hub, including SmartThings, Wink, Staples Connect, Harmony Home, Piper, ADT Pulse, Vera, and Nexia. This product guaranteed with a 2-year limited warranty.

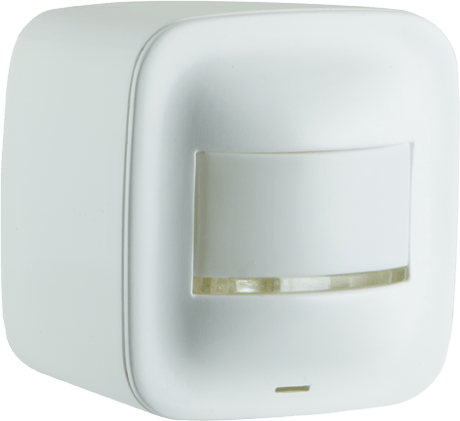

Product Picture
6 - Enable and Disable the PIR Sensor
Enable and disable the PIR sensorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable |
| 0 | 0 | Disable |
13 - PIR Sensitivity Setting
You can modify the sensitivity of PIR if changing the value in parameter 13Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Low Sensitivity |
| 2 | 2 | Medium Sensitivity |
| 3 | 3 | High Sensitivity |
18 - PIR Timeout Duration
PIR Timeout DurationSize: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | 1 min to 60 min |
| 255 | 255 | 5 seconds |
20 - Basic Set, Notification and Basic Report
Changing Parameter 20 can let the mULTIsensor send out "Basic Set" command or "Basic Report" command or "Notification" report to Z-Wave devices.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Motion Sensor will send out Notification |
| 2 | 2 | Motion Sensor will send out Basic Set |
| 3 | 3 | Motion Sensor will sendout Basic Report |
24 - Temperature and Light Sensor Sensing Frequency Setting
Change the temperature and light sensor detection frequencySize: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 60 | 5 min to 60 min |
28 - Enable and disable the LED indication when PIR triggered and after timeout
Enable & Disable the LED indication when PIR is triggered and after timeoutSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
1. Follow the instructions for your Z-Wave certified controller to add the device in the Z-Wave network. 2. Once the controller is ready to add your motion sensor, press and release the button on the sensor to add it in the network. 3. The blue LED will activate for 3 seconds to confirm it has been included in the network.
1. Follow the instructions for your Z-Wave certified controller to remove the device from the Z-Wave network. 2. Once the controller is ready to remove your motion sensor, press and release the button on the sensor to exclude it from the network. 3. The LED will blink for 3 seconds at a time. NOTE: If the sensor’s power source is changed after initial setup (ex: USB power instead of battery power), the sensor must be excluded from the network and then re-included.
1. Press the button 10 times within 6 seconds (interval between 2 presses of the button cannot be longer than 1 second). 2. The blue LED will blink for 3 seconds.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
