fifthplay nv
Home Area Manager
98-002
Gateway
HW: 1 FW: 0.00:01.01
ZM5304
6.61.00
0x0295 (661)
0x0500 (1280)
0x0501 (1281)
ZC10-17055594
2017-02-14 21:42:33.080635
N/A
Bridge Controller
Central Static Controller
Fifthplay’s Home Area Manager (HAM) allows consumers to deploy new value-added services by connecting all kinds of devices in their digital home.
Fifthplay’s Advanced Home Area Manager allows consumers to deploy new value-added services by connecting all kinds of devices and technologies in their digital home. • Modular hardware platform, customizable and extendible by means of bricks (hardware building blocks) and USB interfaces to support various protocols and devices. • Modular software platform, with remote software upgradeable and support functions. • Easy and intuitive installation and configuration. • Broadband internet connection. • Remote access for the customer via Web and Smartphone APP’s.

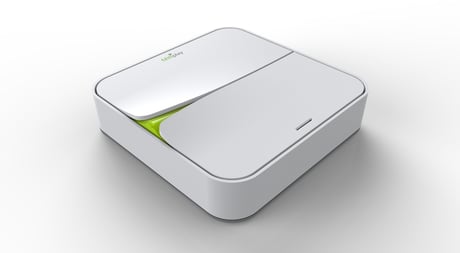

Product Picture
The controller runs a local webserver which can be reached by browsing to the controller's MAC address preceded by 'http://FP'. Example: http://FP<MAC-address>.local A Z-Wave settings page is shown which can be opened by providing a password which is the serial number of the controller (can be found on back of controller). Then the option to 'Learn Mode' will be visible.
The controller runs a local webserver which can be reached by browsing to the controller's MAC address preceded by 'http://FP'. Example: http://FP<MAC-address>.local A Z-Wave settings page is shown which can be opened by providing a password which is the serial number of the controller (can be found on back of controller). Then the option to 'Learn Mode' will be visible. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
The controller must be previously registered by the end customer through the website https://home.fifthplay.com. Once registered and logged in customer can include Z-Wave devices by going to the 'Configuration' page. Select 'Add Device' and follow the instructions. Preferred devices have a wizard who will guide user step by step through inclusion process.
The controller must be previously registered by the end customer through the website https://home.fifthplay.com. Once registered and logged in customer can exclude Z-Wave devices by going to the 'Configuration' page. The list of included devices are shown. The option is provided here to exclude devices.
| Type | Value(s) |
|---|
