DeepSense
P-M-O
RPB11647BSB
On/Off Power Switch
HW: 18 FW: 1.31
ZM5101
6.61.00
0x0259 (601)
0x0003 (3)
0x0002 (2)
ZC10-17025418
2017-02-03 21:38:42.956673
N/A
Enhanced 232 Slave
Always On Slave
P-M-O is a power measurement device that can turn on / off the power.
P-M-O is a Power Meter Outlet that can control On / Off remotely. You can completely replace your regular outlet. You can connect home appliances such as home lamps, TVs, and others. The power status can be remotely controlled, and the LED indication changes according to the power status.

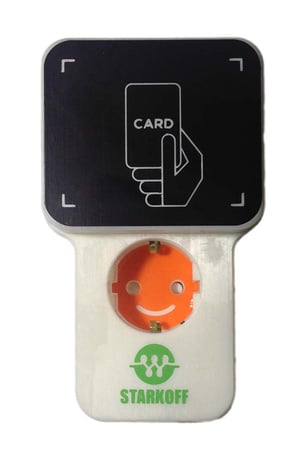

Product Picture
When the controller is in add mode, press and hold the button for 3 seconds until the RED LED indicator blinks.
When the controller is in remove mode, press and hold the button for 3 seconds until the RED LED indicator flashes. When the P-M-O unit is disconnected from the Z-Wave network, the RED LED indicator will be toggled every second.
Press and hold button for 10 seconds until green and red led indicators blink. P-M-O will be initialized and send a device reset locally notification to the controller. Use this function only if the primary controller is lost or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Power |
| Meter type |
|---|
| Electric Meter Consumption |
