DeepSense
PowerGate
PG200
Whole Home Meter - Simple
HW: 255 FW: 1.34
ZM5101
6.61.00
0x0259 (601)
0x0003 (3)
0x0022 (34)
ZC10-17025419
2017-02-03 21:39:35.627266
N/A
Enhanced 232 Slave
Always On Slave
It is a device that is installed in the fuse box of the house and can display current electric power and electricity amount in the house using Z-Wave network in real time.
PowerGate is a Power Meter Sensor that measure whole home electric usage. You can view power and power usage in your Z-Wave controller or your apps. It helps you to monitor and efficiently manage your household electricity usage.

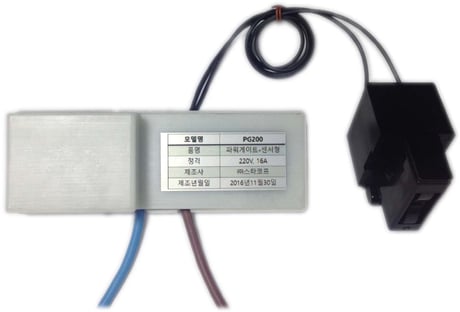

Product Picture
When the controller is in add mode, press and hold the button for 3 seconds until the RED LED indicator blinks.
When the controller is in remove mode, press and hold the button for 3 seconds until the RED LED indicator blinks. When the PowerGate unit is disconnected from the Z-Wave network, the RED LED indicator will be toggled every second.
Press and hold button for 10 seconds until RED led indicators blink. PowerGate will be initialized and send a device reset locally notification to the controller. Use this function only if the primary controller is lost or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Power |
| Meter type |
|---|
| Electric Meter Consumption |
