Jasco Products Company
Plug-in Dual Smart Dimmer, With USB Charging
28174/ZW3106
Light Dimmer Switch
HW: 255 FW: 5.21
ZM5202
6.51.08
0x0063 (99)
0x5044 (20548)
0x3131 (12593)
ZC10-17045538
2017-04-06 00:02:28.329006
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave Plug-in Dual Smart Dimmer With 3.4A USB Charging.
Transform any home into a smart home with the Jasco Z-Wave Plug-in Dual Smart Dimmer With 3.4A USB Charging. This module enable wireless control on on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more ! Use the dimming control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. This module also enables you to have independent or simultaneous control of each outlet! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

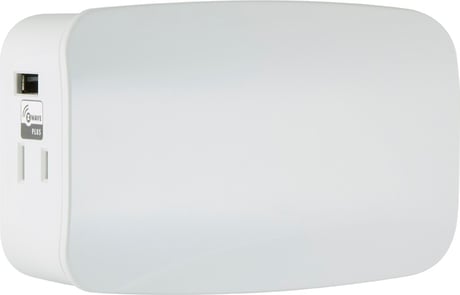

Product Picture
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned On. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned Off, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. • Parameter No: 3 • Length: 1 Byte • Valid Values = 0, 1 or 2 (default 0)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | LED Light Always On |
| 1 | 1 | LED Light On when deivce is Off |
7 - When receiving a Z-Wave Dimmer Command End Point 1
Z-Wave Dim Command End Point 1 Number of Steps or LevelsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of Steps or levels |
8 - When receiving a Z-Wave Dimmer Command End Point 1
Timing of the stepsSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of the steps |
9 - Manual Control Dimming End Point 2
Number of steps or levelsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
10 - Manual Control Dimming End Point 2
Timing of the stepsSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | TIming of the steps |
11 - When Receiving an All-On or All-Off Command
Number of steps or levelsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of steps or levels |
12 - When Receiving an All-On or All-Off Command
Timing of the stepsSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Timing of the steps |
1. Follow the instructions for your Z-wave certified controller to add the device to the Z-wave network. 2. Once the controller is ready to add your smart switch, single press and release the manual/program button on the smart switch to add it in the network. 3. Once your controller has confirmed that the smart switch has been added, refresh the Z-wave network to optimize performance.
1. Follow the instructions for your Z-wave certified controller to remove a device from the Z-wave network. 2. Once the controller is ready to remove your device, press and release the manual/program button on the smart switch to remove it from the network.
1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
