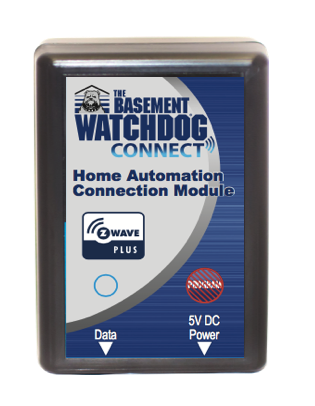

Basement Watchdog
Sump Pump Module
SPM1
Notification Sensor
HW: 3 FW: 1.20
ZM5202
6.51.09
0x0084 (132)
0x0093 (147)
0x0114 (276)
ZC10-17025429
2017-02-10 00:58:45.209057
N/A
Enhanced 232 Slave
Always On Slave
Yes
Z-Wave Interface for use with Basement Watchdog Battery Backup Sump Pump Systems
Connect your Basement Watchdog Battery Backup Sump Pump to your Z-Wave network and receive Sump Pump Alerts directly to your phone! From notifications when the backup system has turned on to problems with your pump motor or battery. You won't have to wonder any longer if your sump pump system is working properly.
1) Set up the inclusion mode at the controller; 2) Briefly press the switch once and the controller will indicate the unit has been included in the network. Also, the LED will blink when the inclusion completes. Inclusion and exclusion are always done at normal transmit power mode. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
1) Set up the exclusion mode at the controller; 2) Briefly press the switch once and then release. The controller will indicates the unit has been removed from the network. The LED will blink when the exclusion completes.
1 quick press of the program switch. The SPM will send the Z-Wave TM Node information frame when the switch is briefly pressed. This is primarily used for inclusion as described above.
The unit can be reset to factory default via 3 quick presses of the program switch. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
The SPM is designed such that it can be installed in either a Retrofit or a factory-installed mode. In the Retrofit mode, the SPM is attached the cold contacts on the outside of the Sump Pump Controller’s enclosure
