Nexia
Remote Temperature and Humidity Sensor
TH100NX
Notification Sensor
HW: 2 FW: 1.47
ZM5202
6.51.07
0x0178 (376)
0x5448 (21576)
0x3130 (12592)
ZC10-17075709
2017-07-28 16:28:49.544474
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel sensor that measures indoor temperature and humidity.
The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel, battery-powered, routing sensor that measures and reports indoor temperature and relative humidity. The reporting intervals and thresholds for the indoor temperature, indoor humidity and battery are configurable. The wakeup interval is also configurable. This sensor cannot be used with Trane/American Standard thermostats for HVAC control.

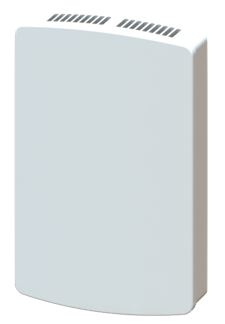

Product Picture
1 - Battery Report Interval
Time between Battery Reports in hoursSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | Hours, unsigned |
| 0 | 0 | Disabled |
2 - Basic Set ON Above Temp
Send Basic Set ON above tempSize: 1 byte
Default: 121
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 121 | 121 | Disabled |
| -40 | 120 | Fahrenheit |
3 - Basic Set ON Below Temp
Send Basic Set ON below tempSize: 1 byte
Default: 121
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 121 | 121 | Disabled |
| -40 | 120 | Fahrenheit |
4 - Basic Set OFF Above Temp
Send Basic Set OFF above tempSize: 1 byte
Default: 121
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 121 | 121 | Disabled |
| -40 | 120 | Fahrenheit |
5 - Basic Set OFF Below Temp
Send Basic Set OFF below tempSize: 1 byte
Default: 121
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 121 | 121 | Disabled |
| -40 | 120 | Fahrenheit |
6 - Basic Set Attempts
Make multiple attempts for all Basic Set Commands. Number of extra attempts sent every minute after first send.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 5 | Number of extra attempts, unsigned |
7 - Temp Units
Temperature UnitsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius |
| 1 | 1 | Fahrenheit |
8 - Group1 Temp Threshold
Group1 - temperature delta auto-send threshold (how many degrees changed from the last auto-send)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 200 | Tenths of degrees, unsigned |
9 - Group1 Temp Interval
Group1 - periodic temperature send interval (minutes)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Minutes, unsigned |
| 0 | 0 | Disabled |
10 - Group2 Temp Threshold
Group2 - temperature delta auto-send threshold (how many degrees change from the last auto-send)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | Tenths of degrees, unsigned |
11 - Group2 Temp Interval
Group2 - periodic temperature send interval (minutes)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 120 | Minutes, unsigned |
12 - Basic Set ON Above RH
Send Basic Set ON above humiditySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | %, unsigned |
| 0 | 0 | Disabled |
13 - Basic Set ON Below RH
Send Basic Set ON below humiditySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | %, unsigned |
14 - Basic Set OFF Above RH
Send Basic Set OFF above humiditySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | %, unsigned |
15 - Basic Set OFF Below RH
Send Basic Set OFF below humiditySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | %, unsigned |
| 0 | 0 | Disabled |
16 - Group1 RH Threshold
Group1 - humidity delta auto-send threshold (how much % change from the last auto-send)Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | %, unsigned |
17 - Group1 RH Interval
Group1 - periodic humidity send interval (minutes)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 120 | Minutes, unsigned |
18 - Group3 RH Threshold
Group3 - humidity delta auto-send threshold (how much % change from the last auto-send)Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 30 | %, unsigned |
19 - Group3 RH Interval
Group3 - periodic humidity send interval (minutes)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Minutes, unsigned |
| 0 | 0 | Disabled |
20 - Basic Set Option
Basic Set options for Temp and HumiditySize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Enabled Registers 2, 5, 13, 14 |
| 3 | 3 | Enable Registers 3, 4, 12, 15 |
| 4 | 4 | Enabled Registers 3, 4, 13, 14 |
| 1 | 1 | Enable Registers 2, 5, 12, 15 |
21 - Temp Offset
Temperature offsetSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -7 | 7 | Degrees |
22 - Humidity Offset
Humidity OffsetSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -7 | 7 | % |
23 - Humidity Filter Time Constant
Humidity Filter Time Constant in minutesSize: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Minutes |
| 0 | 0 |
Set your primary controller into inclusion mode. Press and release the ""Install"" button on the sensor. The ""Status"" LED will blink rapidly for 3 seconds indicating successful inclusion into the network.
Set your primary controller into exclusion mode. Press and release the ""Install"" button on the sensor. The ""Status"" LED will blink rapidly for 3 seconds indicating successful exclusion from the network.
A triple press of the ""Install"" button wakes the device up, and it will send a WAKE_UP_NOTIFICATION and a Battery Report (if on a network). A single press of ""Install"" button will wake the device up, and it will send out a Node Information Frame.
Press and hold Install button for 10 seconds. Factory Reset should only be used if the primary controller is missing or inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
