Ei Electronics
Z-Wave Smoke/Heat Alarm
EiA660RFZ
Notification Sensor
HW: 1 FW: 1.02
ZM5202
6.51.06
0x026B (619)
0x0004 (4)
0x0004 (4)
ZC10-17025447
2017-02-24 05:01:01.851685
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
This product consists of a premium quality Z-Wave Photoelectric Smoke/Heat Alarm. The Alarm will also function as a standalone device and is certified by Underwriters Laboratories and satisfies all UL217 requirements. Patented, high-performance optical chamber with temperature sensor further reduces the possibility of false alarms.
This product consists of a premium quality Photoelectric Smoke & Heat Alarm designed to North American standards, combined with a plug-in Z-Wave wireless communication module. The Alarm will also function as a standalone device and is certified by Underwriters Laboratories and satisfies all UL217 requirements. Patented, high-performance optical chamber with integral micro-mesh fixed insect screen further reduces the possibility of false alarms. The fixed & Rate of rise temperature sensor allows for early indication of fast flaming fires. A large test button allows on-device test of smoke chamber, electronics and battery. The device also offers a built-in self-test and an electronic smoke chamber test making the use of test aerosol unnecessary. A low battery warning will last for 30 days, but full function of the Alarm will continue during this time. The Z-Wave module allows the device to report smoke (EiA650RFZ) or to report smoke, heat warning (EiA660RFZ) as well as low battery alarms wirelessly to a central Z-Wave Controller.

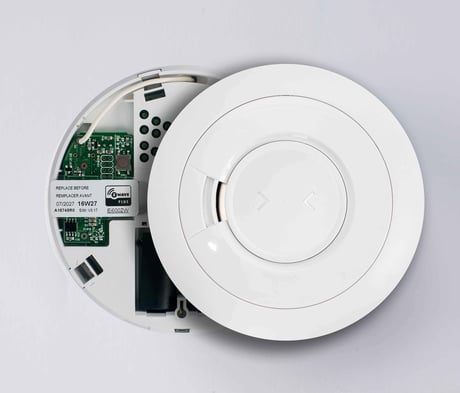

Product Picture
To include the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To exclude the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Smoke Density |
