QUBINO
DIN Dimmer
ZMNHSD1
Light Dimmer Switch
HW: 2 FW: 2.02:02.02
ZM5202
6.51.07
0x0159 (345)
0x0001 (1)
0x0052 (82)
ZC10-17035480
2017-03-14 00:41:25.769031
N/A
Enhanced 232 Slave
Always On Slave
DIN Dimmer is a DIN rail mounted dimmer for light bulbs. You can control it either remotely through the Z-Wave network or through wall switches. It also measures power consumption and supports the connection of a digital temperature sensor.

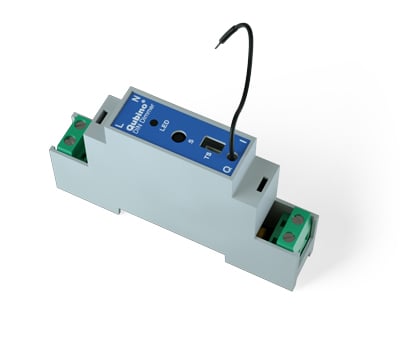

Product Picture
1 - Input switch type
Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Mono-stable switch type (push button) |
| 1 | 1 | Bi-stable switch type |
5 - Working mode
With this parameter is possible to change the module presentation on the user interface NOTE: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module!Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dimmer mode |
| 1 | 1 | Switch mode |
| 0 | 0 |
10 - Activate / deactivate functions ALL ON / ALL OFF
DIN Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | ALL ON active, ALL OFF active |
| 0 | 0 | ALL ON is not active, ALL OFF is not active |
| 1 | 1 | ALL ON is not active, ALL OFF active |
| 2 | 2 | ALL ON active, ALL OFF is not active |
11 - Automatic turning off output after set time
Turns off the output after set time.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto OFF disabled |
| 1 | 32536 | = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second |
12 - Automatic turning on output after set time
Turns on the output after set time.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto ON disabled |
| 1 | 32535 | = 1second - 32535 seconds Auto ON enabled with define time, step is 1 second |
21 - Enable/Disable Double click function
If Double click function is enabled, a fast double click on the push button will set dimming power at maximum dimming value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Double click disabled |
| 1 | 1 | Double click enabled |
30 - Saving the state of the device after a power failure
Based on the parameter settings the stores/does not store the last value of the output after power failure.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | DIN Dimmer module saves its state before power failure (it returns to the last position saved before a power failure) |
| 1 | 1 | DIN Dimmer module does not save the state after a power failure, it returns to "off" position |
40 - Power reporting in Watts on power change
Set value means percentage, set value from 0 - 100=0% - 100%. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 100 | = 1% - 100% Reporting enabled |
42 - Power reporting in Watts by time interval
Set value means time interval (0 – 32767) in seconds, when power report is send. Reporting enabled. Power report is send with time interval set by entered value. Please note, that too fast reporting can cause too much Z-Wave traffic resulting in Z-Wave poor response.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 32767 | = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value. Please note, that too fast reporting can cause too much Z-Wave traffic resulting in Z-Wave poor response |
60 - Minimum dimming value
The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class. When the switch type is selected as Bi-stable, it is not possible to dim the value between min and max. If Switch_multilevel_set is set to the value “0”, the output is turned OFF. If Switch_multilevel_set is set to the value “1”, the output is set to the minimum diming value.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | = 1% (minimum dimming value) |
| 1 | 98 | = 1% - 98%, step is 1%. Minimum dimming values is set by entered value. |
61 - Maximum dimming value
The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class. When the switch type is selected as Bi-stable, it is not possible to dim the value between min and max.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 99 | 99 | = 99% (Maximum dimming value) |
| 2 | 99 | = 2% - 99%, step is 1%. Maximum dimming values is set by entered value |
65 - Dimming time (soft on/off)
Set value means time of moving the DIN Dimmer between min. and max. dimming values by short press of push button I or controlled through UI (BasicSet).Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 100 | 100 | = 1s |
| 50 | 255 | = 500 mseconds - 2550 mseconds (2,55s), step is 10 mseconds |
66 - Dimming time when key pressed
Time of moving the DIN Dimmer between min. and max dimming values by continues hold of push button I or associated device.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 3 | = 3s |
| 1 | 255 | 1 second - 255 seconds |
67 - Ignore start level
This parameter is used with association group 3.A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Respect start level |
| 1 | 1 | Ignore start level |
68 - Dimming duration
This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dimming duration according to parameter 66 |
| 1 | 127 | From 1 to 127 seconds |
110 - Temperature sensor offset settings
Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value = 32536 • 32536 = offset is 0.0C • 1 - 100 = value from 0.1 °C to 10.0 °C is added to actual measured temperature. • 1001 - 1100 = value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 32536 | 32536 | Offset is 0.0 degrees Celsius |
| 1 | 100 | Value from 0.1 degrees Celsius to 10.0 degrees Celsius is added to actual measured temperature |
| 1001 | 1100 | Value from -0.1 degrees Celsius to 10.0 degrees Celsius to -10.0 degrees Celsius to 10.0 degrees Celsius is subtracted to actual measured temperature |
120 - Digital temperature sensor reporting
Digital temperature sensor reporting If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 = reporting disabled • 1- 127 = 0,1°C - 12,7°C, step is 0,1°CSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 5 | 0,5 degrees Celsius change |
| 0 | 0 | Reporting disabled |
| 1 | 127 | = 0,1 degrees Celsius - 12,7 degrees Celsius, step is 0,1 degrees Celsius |
• Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
• Connect module to power supply • bring module within maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on main controller, • press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. By this function all parameters of the module are set to default values and own ID is deleted. If push button I1 is pressed three times within 3s (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values. NOTE 1: If the module is included with parameter 1 value 3, 4 or 5 and module reset is done, wait at least 30s before next inclusion. NOTE 2: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
• Press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
