LEEDARSON

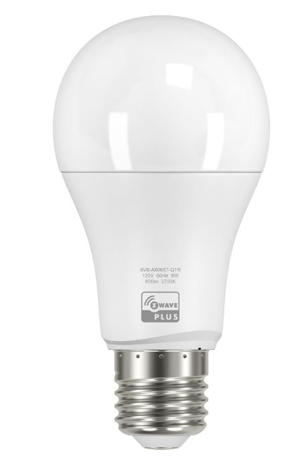

A19 LED BULB DIMMABLE
6VB-A806ST-Q1R
Light Dimmer Switch
HW: 255 FW: 1.03
ZM5101
6.51.09
0x0300 (768)
0x0003 (3)
0x0005 (5)
ZC10-17035467
2017-03-09 21:55:33.034222
N/A
Enhanced 232 Slave
Always On Slave
The Leedarson DIM bulb is based on Z-Wave protocol, realizing basic function of on/of/dim. The DIM Retrofit produces beautiful high quality light that you can tune, dim, and control from your smartphone or tablet
Our connected dimmable lighting has basic function of On, Off and Dim, or in the lighting world, we just call it OFD. Using your app and controller/gateway, you can turn your lights on, off and dim them down to 5% brightness from anywhere in the world, using your smartphone. At 2700K and 800 lumens, it is a true 60W equivalent. With all of our lighting, and the app that supports it, you can group lights together, set different lighting scenes for different groups and set schdules to autotmatically turns lights, and groups, on and off. Not only does this give you tremendous lighting flexibility, but it’s great for security purposes. Automatically turning your lights on and off when you’re away, gives the impression you are actually home and this will help deter unwanted entry. Our connected lighting has the additional option for what we call Saved State. Saved State allows you to save an actual light setting in the bulb itself. This means that when you lose power, the lights will not come back on to the standard, blaring 2700K at full bright. The Saved State will allow the lights to come back on to the nice setting you’ve previously saved. LEEDARSON stays on the cutting edge of technology and innovation. That’s because they have a responsibility to their customers. That’s because at LEEDARSON, “We build your success in IoT.”
255 - reset
Reset to factory configuration and removed the Z-Wave network. Reset Configuration parameter to default value.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2004318072 | -2004318072 | Reset to factory configuration and removed the Z-Wave network. |
| -2013265920 | -2013265920 | Reset Configuration parameter to default value. |
1. Screw the DIM bulb into a standard E26 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the“included/excluded “ mode on your Z-Wave controller or gateway. a) This may also be done through your associated app,if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/excluded “into your Z-Wave network.
1. Screw the DIM bulb into a standard E26 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the“included/excluded “ mode on your Z-Wave controller or gateway. a) This may also be done through your associated app,if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/excluded “into your Z-Wave network.
Physically switch the bulb on and off six (6) times for intervals of 0.5-2seconds. After the 6thtime, the bulb will flash twice indicating that it’s successfully reset. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
