KPL MOTION SENSOR
PIR-ZWAVE
IX30-ZWAVE
Notification Sensor
HW: 255 FW: 5.36
ZM5202
6.51.09
0x0214 (532)
0x0002 (2)
0x0002 (2)
ZC10-17035481
2017-03-14 01:14:55.392329
N/A
Routing Slave
Reporting Sleeping Slave
Yes

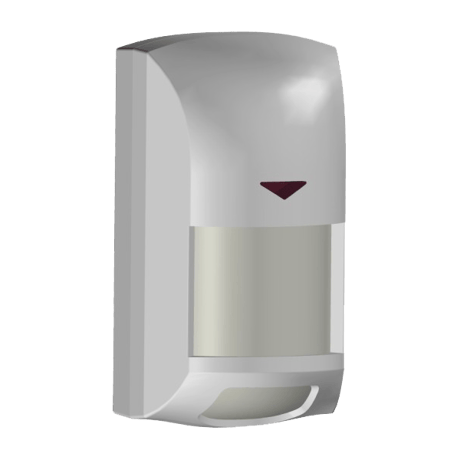

IX30-Z-Wave is a kind detector which can detect human motion.when human move in the range of detection, the detector will send alarm information to the gateway
IX30-Z-Wave is a digital micro-control intrusion detector adopting Energy Accumulation Logical Processing & Random Dynamic Time Segmentation Technology. With precise columnar Fresnel lens, IX30-Z-Wave can increase its energy receiving efficiency and sensitivity without false alarm. In conjunction with advanced software technology, it will make an accurate judgment between real intruder & interference factors that may cause false alarm. Superior ability to detect & prevent false positives.
1 - Basic Set Level
If there is any device under Association Group2, the door sensor will send “Basic Set = value” command to control that device when the door sensor is opened.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | For ON/OFF Light Only |
| 1 | 100 | Dimmer Level |
2 - Turn Off Light Time
If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to Group2, and send “Basic Set = 0x00” command to turn-off light after “5 x t” secondsSize: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 24 | Turn Off Light Time |
3 - PIR Sensor Alarm Elimination Time Configuration
Min set time is 5s. If the configuration is 1, that means it will eliminate alarm after 5 seconds, if t, will eliminate alarm after “5 x t” seconds.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 24 | PIR Sensor Alarm Elimination Time Configuration |
enter the Inclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will stay in enrollment state until successfully enrolled into network or enrollment time out after 30s.
enter the Exclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will be removed after a period of time.
a) Manual Wake-up Quickly press tamper switch once, the PIR sensor will automatically send wake-up information, and there will be 10s after wake-up to receive gateway setting information. b) Automatic Wake-up Default time of automatic wake-up is 24 hours, and there will be 10s after wake-up to receive gateway setting information, the max automatic report time = 24 hours, minimum=30min
Press the anti-tamper switch for 6 times within 2.5 seconds to restore factory settings(Please include a request to use the reset procedure only when the primary controller is missing or inoperable)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
