Philio
Multi Sound Siren
PSE02
Siren
HW: 1 FW: 1.15:01.12
SD3502
6.51.09
0x013C (316)
0x0004 (4)
0x000A (10)
ZC10-17035477
2017-03-14 00:49:06.92976
N/A
Enhanced 232 Slave
Always On Slave

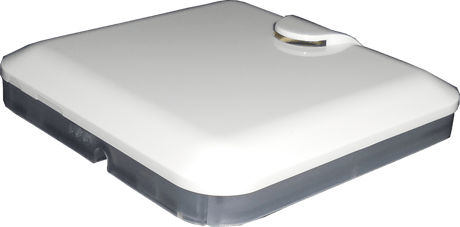

The multiple sound siren PSE02 is a wireless siren, based on Z-Wave technology.
The multiple sound siren PSE02 is a wireless siren, based on Z-Wave™ technology. It is the Z-Wave™ plus product, it support the security, OTA... Those newest features of the Z-Wave™ technology. Z-Wave™ is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances.
7 - Customer Function
Customer function switch, using bit control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 16 | 16 | Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. |
29 - Disable Alarm
Disable the alarm function. 1: Disable Alarm, 0: Enable Alarm. Caution: After the power up, this configuration always be 0.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 1: Disable Alarm, 0: Enable Alarm. |
31 - Alarm Duration
Play alarm sound duration, 1 tick is 30 seconds. Default is 3 minutes, maximum is 63.5 minutes 0: means never auto stop.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Play alarm sound duration, 1 tick is 30 seconds |
1. Have Z-Wave™ Controller entered inclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the LED will light ON 1 second
1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded.
This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications.
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default.
Tamper Report When the tamper key is pressed over 5 seconds. The device will into the alarm state. In that state, if the tamper key be released, the device will unsolicited to send the report to the nodes in the group 1.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
