LEEDARSON
A60 LED BULB TUNABLE WHITE
6VB-A806ST-Q1Z
Light Dimmer Switch
HW: 255 FW: 1.01
ZM5101
6.51.09
0x0300 (768)
0x0003 (3)
0x0004 (4)
ZC10-17035473
2017-03-14 01:13:15.254122
N/A
Enhanced 232 Slave
Always On Slave
The Leedarson CCT bulb is based on Z-Wave protocol, realizing basic function of on/of/dim/tunable white. The CCT Retrofit produces beautiful high quality light that you can tune, dim, and control from your smartphone or tablet
Our connected CCT tunable lighting has two functional categories, one is your basic On, Off and Dim, or in the lighting world, we just call it OFD. Using your app and controller/gateway, you can turn your lights on, off and dim them down to 5% brightness from anywhere in the world, using your smartphone. At 2700K and 800 lumens, it is a true 60W equivalent. Another one this is where the innovative technology takes over. You get your basic On, Off and Dim, but now you have the ability to tune the white color from a warm 2700K to a cool 6500K. The ability to tune the white is what we call Tunable White, or TW. Having this ability, and the ability from your app, you can now set the perfect scene and mood in your home. In the evening, while watching TV, you may want to tune down the white color to a warm, cozy 2700K. Or maybe your kids have homework, and it’s late, so to help keep their concentration, you turn the white color up to 6500K, which is similar to daylight. With all of our lighting, and the app that supports it, you can group lights together, set different lighting scenes for different groups and set schdules to autotmatically turns lights, and groups, on and off. Our connected lighting has the additional option for what we call Saved State. Saved State allows you to save an actual light setting in the bulb itself. This means that when you lose power, the lights will not come back on to the standard, blaring 2700K at full bright. The Saved State will allow the lights to come back on to the nice setting you’ve previously saved. LEEDARSON stays on the cutting edge of technology and innovation. That’s because they have a responsibility to their customers. That’s because at LEEDARSON, “We build your success in IoT.”

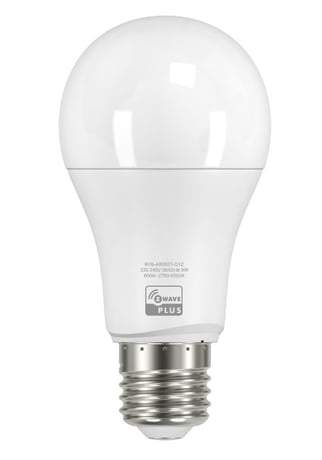

Product Picture
255 - Reset
Reset to factory configuration and removed the Z-Wave network. Reset Configuration parameter to default value.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2004318072 | -2004318072 | Reset to factory configuration and removed the Z-Wave network. |
| -2013265920 | -2013265920 | Reset Configuration parameter to default value. |
1. Screw the CCT bulb into a standard E27 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the “included/excluded “mode on your Z-Waveave controller or gateway. a) This may also be done through your associated app,if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/excluded “into your Z-Wave network. Note: If you are using 3rdpartyZ-Wave Controller or Gateway, please refer to 3rdParty’s instruction on how to add a new devices to your network. Note 2: If the bulb will not join the network after repeated attempts, please use the Factory Reset procedures to clear the bulb’s settings.
1. Screw the CCT bulb into a standard E27 socket. 2. Turn on the bulb with your wall switch to apply power to the bulb. a) If you’re not using a wall switch, then use your alternate method to apply power to the bulb. 3. Activate the “included/excluded “mode on your Z-Waveave controller or gateway. a) This may also be done through your associated app,if your ecosystem has that capability. 4. Toggle the wall-switch, from OFF, then to ON. a) Or use your alternate method to toggle power from OFF, then to ON. 5. The LED bulb will flash once if it has been successfully “included/excluded “into your Z-Wave network. Note: If you are using 3rdpartyZ-Wave Controller or Gateway, please refer to 3rdParty’s instruction on how to add a new devices to your network. Note 2: If the bulb will not join the network after repeated attempts, please use the Factory Reset procedures to clear the bulb’s settings.
Physically switch the bulb on and off six (6) times for intervals of 0.5-2seconds. After the 6thtime, the bulb will flash twice indicating that it’s successfully reset. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
