MK Electric
1G Switch
LSM11M
Not Z-Wave Plus
A
ZW0301
5.02 (PATCH 3)
0x0040 (64)
0x0805 (2053)
0x0101 (257)
ZC08-09090021
0001-01-01 00:00:00
N/A
Routing Slave
N/A
This product is mains powered and used to control an externally connected load (up to 10AX rating). The device features a switch on the front for toggling the state of the load. It is also possible to associate other devices with the switch1 and 2 Gang versions available Up to 75m RF range (open field) Can only control a group Can control to up to 5 devices in total Maximum of 5 devices per control channel Mains-powered astral holiday mode occupation simulation Use astral switch fascias ANG 10AX SWITCH MODULE Select the appropriate 1 Gang or 2 Gang Switch Fascia for your Switch Controller Module. Suitable for use with the following load types and maximum load ratings only. GLS / Tungsten filament 25 - 2400W Tungsten halogen 25 - 2000W Fluorescent tubes with ferro-magnetic ballast and power factor correction 18 - 1800W Maximum load capacitance 140μF Fluorescent tubes with electronic ballast* (eg 30 x 18W tubes/ballasts) 18 - 540W Compact fluorescent (low energy) lamps* 25 - 750W ELV Tungsten halogen ferro-magnetic or electronic transformers* 25 - 1500VA

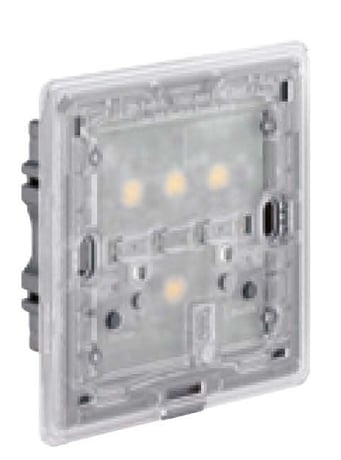

Product Picture as Published
