Steinel GmbH
XLED home 2 Z-Wave
50111677101.0
On/Off Power Switch
HW: 7 FW: 1.00:01.00
ZM5202
6.51.09
0x0271 (625)
0x0001 (1)
0x1A73 (6771)
ZC10-17045541
2017-03-21 22:06:44.486818
N/A
Enhanced 232 Slave
Always On Slave

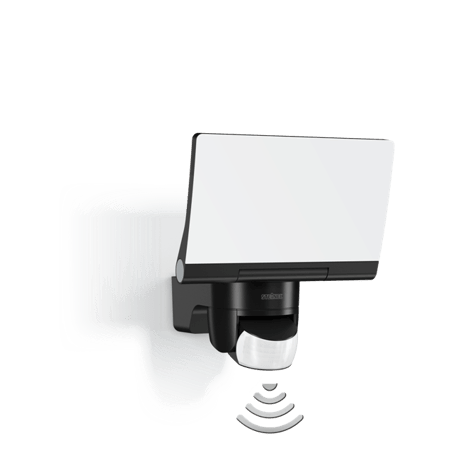

Sensor-switched outdoor floodlight, can be integrated into the Smart Friends system or any other Z-Wave network, for even more safety and security. Fully swivelling LED panel, 1184 lm at a power consumption of only 14.8 W. Swivelling precision IR sensor. 140° angle of coverage, 14 m reach. High thermal conductivity magnesium composite cooling system (HCMC).
The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swiveling LED panel, every corner of the entrance area can be illuminated flexibly and as required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. As an individual floodlight or interconnected with the slave version, the innovative new generation of the XLED home success series is available in white, black, graphite and silver. Smart home included. The optional Smart Friends Box and the free Smart Friends app make it easy to set the XLED home 2 Z-Wave via smart phone or tablet. The floodlight can also be switched ON or OFF via app. Other Steinel products can also be interconnected. If you wish, this also works via remote control when you are out. That completes your own light management system. Along with STEINEL products, Smart Friends solutions from PAULMANN, SCHELLENBERG and ABUS can also integrated. Smart homes from a brand-name provider.
1 - TIME
Duration of light after motion detection.Size: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 900 | seconds |
2 - LIGHT
Light threshold [ lx ] Value can be controlled via potentiometer – potentiometer value is used as the default value and any potentiometer movement rewrites the current setting.Size: 2 bytes
Default: 2000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | run Learn ambient light sequence (the level is set automatically) |
| 2 | 1999 | lux |
| 2000 | 2000 | 2000 - is used as daylight ( always night mode) |
5 - SENSITIVITY
Motion Sensor (radar) Sensitivity [%] Value can be controlled via potentiometer – potentiometer value is used as the default value and any potentiometer movement rewrites the current settingSize: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 100 | % |
6 - BRIGHTNES MEAS INTERVAL
Brightness measuring interval [ minutes ] Interval for ambient light measuring when lamp is on ( lamp switches off shortly and measures ). 0=function is offSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function is off |
| 5 | 120 | minutes |
8 - GLOBAL_LIGHT
Use External Ambient Light Value When GLOBAL_LIGHT mode is ON – device overrides its own light sensor values and uses Light report values from any Z-Wave light sensor instead – this has to be configured appropriately to send light automatically. If the last remote light level value is older than 30 minutes, the internal light value is used again until the next external value is received.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | ON function |
| 0 | 0 | OFF function |
9 - SLAVE_MODE
Can disable sensor controll “Stupid” mode (bit 2 = 1): - has higher priority then slave mode. - lamp is permanently on (usefull for simple power wall switch controlling). Slave mode ( bit 0 = 1 ): - only if included in Z-Wave network - usefull for controlling via third-party sensor - lamp is directly controlled via Z-Wave, internal sensors are not used for controlling it. Central unit checking ( bit 1 = 1 ): ( usefull especialy for controlling via gateway ) When Slave bit is 0: - lamp signalises fail of lifeline connection ( if this bit is zero fail of lifeline connection is not signalised ) When slave bit is 1: - lamp checks presence of Z-Wave device in lifeline group ( gateway ). If it is not present for 2 minutes ( testing repeatedly every 30 seconds ) device switches to normal mode in the same way as after the end of local disabled mode ( ON_BEHAVIOUR ) - The device checks every 1 minute for recovery of Lifeline connection. - if no lifeline specified - it works in normal mode Be careful with this option, lamp stops using it’s own motion sensor in Slave and Stupid mode.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal mode |
| 1 | 1 | Slave mode without gateway checking |
| 2 | 2 | Normal mode with lifeline error signalisation |
| 3 | 3 | Slave mode with gateway checking |
| 4 | 4 | Stupid mode - lamp permanetly on |
10 - OFF_BEHAVIOUR
Behaviour after BASIC OFF ( and similar commands ). If a transition ( even with zero change ) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case. for values 1-209 - Lamp is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Lamp is switched off and remains so until any new motion event (local or remote) is received. |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | Lamp is switched off for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation |
11 - ON_BEHAVIOUR
Behaviour after BASIC ON (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case. for values 1-209 - Lamp is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Lamp is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled. |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | Lamp is switched on for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation. |
12 - ON_TIME_OVER
Time limit to stop waiting for motion after timeout of ON_BEHAVIOUR or OFF_ON_BEHAVIOUR ( 0-209 ) to prevent staying ON forever when is no motion.Size: 2 bytes
Default: 204
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | o additional waiting for motion. |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | Never stop waiting before motion. |
13 - ON_OFF_BEHAVIOR
Behaviour after after a rapid sequence of BASIC ON and BASIC OFF commands. The intention is to use a much longer timeout value than the time after a single ON command which should then be followed by a short timeout value. The behaviour is almost the same as for parameter 10 (OFF_LOCAL_DISABLE) for values 1-209 - Lamp is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received.Size: 2 bytes
Default: 204
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Lamp is switched off and remains so until any new motion event (local or remote) is received. |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | device ignores ON - OFF sequence and uses OFF behavior |
14 - OFF_ON_BEHAVIOUR
Behaviour after after a rapid sequence of BASIC OFF and BASIC ON commands. The intention is to use a much longer timeout value than the time after a single OFF command which should then be followed by a short timeout value. The behaviour is amost the same as for parameter 11 for values 1-209 - Lamp is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation.Size: 2 bytes
Default: 204
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Lamp is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled. |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution. |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | device ignores OFF - ON sequence and uses ON behaviour |
15 - SEQUENCY_TIME
Time in [ 100 miliseconds ] of maximum delay between BASIC ON and BASIC OFF ( and vice versa ) to consider this as a sequence. It is typically 1 second, but can be exceptionally longer due to retransmissions and overload – in this case, a longer interval can be allowed ( up to 5 seconds ).Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | tenth of second |
16 - MOTION_DISABLE
Motion disable timeout after BASIC SET to motion endpoint when the internal motion sensor is not used for evaluating the behaviour of the lamp and groups 2 and 3. Events are, however, still transmitted to the Lifeline, and the lamp can be controlled via remote motion sensors. for values 1-209 - Internal motion sensor is disabled for specified timeout after BASIC SET 0x00 to Motion endpoint.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | BASIC SET to Motion endpoint ignored, Motion sensor still enabled |
| 1 | 100 | timeout: 1 second (1) to 100 seconds (100) in 1-second resolution |
| 101 | 200 | timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution |
| 201 | 209 | timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution |
| 255 | 255 | BASIC SET to Motion endpoint ignored, Motion sensor still disabled |
To put the device into inclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The status LED (G) lights up to show that this mode is selected. Adding XLED home 2 to the Smart Friends system: 1) Download the Smart Friends app from the app store. 2) In the rooms view, activate the edit mode. 3) Select the chosen room and press the ""Add device"" button. 4) To put the device into inclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The status LED (G) lights up to show that this mode is selected. 5) The app displays a confirmation message once inclusion has been successfully completed.
To put the device into exclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The red status LED (G) lights up to show that this mode is selected. Removing XLED home 2 from the Smart Friends system: 1) In the rooms view, activate the edit mode. 2) Select the device in the chosen room and press the ""delete"" button. Press delete and follow the instructions in the app. 3) To put the device into exclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The red status LED (G) lights up to show that this mode is selected. 4) The app displays a confirmation message once exclusion has been successfully completed.
Resetting XLED home 2 to factory settings: Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1) Turn the device's control dial (F) to ""Set"" and move it to ""Reset"" within 5 seconds. 2) The status LED (G) briefly flashes to show that the light has been reset. 3) The device is now no longer included in the Z-Wave system and has been returned to factory settings.
Setting XLED home 2 with the app: –– After programming, an ON/OFF scene is automatically created in the app. –– The following setting values are then automatically stored: a) Twilight setting = control-dial setting b) Time setting = 3 min switch-OFF delay –– The twilight and time settings can be selected to the accuracy of one lux and one second respectively in the ""Scene"" menu.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
| Illuminance |
