Brand

Oomi

Name

In-Wall Switch

Part number

FT116-C

Device type

On/Off Power Switch

Description

Oomi In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches also provides energy metering.

Description long

Oomi In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the In-Wall Switch. The In-Wall Switch is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.

Z-Wave Features

Categories (3)

All Lighting Devices

Energy Meters

On/Off Switches/Devices

Z-Wave Chip Series

500

Region (1)

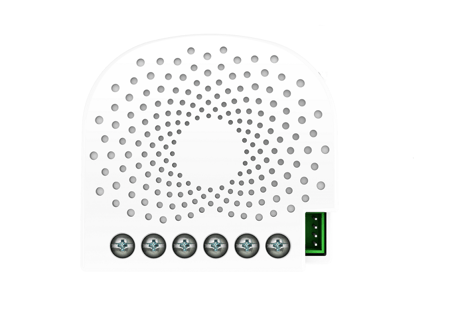

Product Picture

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

3 - Current Overload Protection.

Output Load will be turned off automatically after 30 seconds and if the current overrun 15.5A.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Enable
0	0	Disable

4 - Overheat protection.

Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable

20 - Configure the output status after re-power on it.

Configure the output status after re-power on it.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Always on
0	0	Last status
2	2	Always off

80 - To set which notification would be sent to the associated devices (Group 1)

To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmer’s load is changed.

Size: 1 byte

Default: 3

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Hail CC
2	2	Send Basic Report CC
3	3	Send Hail CC when using the manual switch to change the load state.

81 - To set which notification would be sent to the associated nodes in association group 3

To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Basic Set CC

82 - To set which notification would be sent to the associated nodes in association group 4

To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Send Nothing
1	1	Send Basic Set CC

83 - Configure the state of LED when it is in 3 modes

Configure the state of LED when it is in 3 modes (Energy mode, Momentary indicate mode, Night light mode)

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
2	2	Night light mode. The LED will remain ON state.
0	0	Energy mode. The LED will follow the status (on/off).
1	1	Momentary indicate mode. When the state of Switch’s load changed, the LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action.

84 - Set the ON/OFF time of the LED when it is in Night light mode.

Set the ON/OFF time of the LED when it is in Night light mode.

Size: 4 bytes

Default: 301991936

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	60	The minute time of OFF
256	316	The hour time of OFF
65536	65596	The minute time of ON
16777216	16777276	The hour time of ON

86 - Set appointment 1

Set the ON time of output load.

Size: 4 bytes

Default: 8327680

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
65536	65543	The day value (Mon to Sun)
16777216	16777216	Enable the setting.
256	316	The hour value of ON time
16777215	16777215	Disable the setting.
0	60	The minute value of ON time

87 - Set appointment 2

Set the OFF time of output load.

Size: 4 bytes

Default: 8327680

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
256	316	The hour value of ON time
65536	65543	The day value (Mon to Sun)
16777215	16777215	Disable the setting.
0	60	The minute value of ON time
16777216	16777216	Enable the setting.

90 - Enables/disables parameter 91 and 92 below:

Enables/disables the function of parameter 91 and 92.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Disable
1	1	Enable

91 - Set the threshold value of wattage.

Threshold change in wattage (in terms of wattage) to induce an automatic report.

Size: 2 bytes

Default: 25

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	60000	The thershold value range is 0 to 60000

92 - Set the threshold value of wattage.

Threshold change in wattage (in terms of percentage) to induce an automatic report.

Size: 1 byte

Default: 5

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	100	The thershold value range is 0 to 100

100 - Set parameter 101-103 to default value.

Set parameter 101-103 to default value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset the parameter 101-103

101 - To set which reports need to be sent in Report group 1.

To set which reports need to be sent in Report group 1.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
4	4	Send Meter Report of voltage (V)
2	2	Send Meter Report of wattage (W)
8	8	Send Meter Report of current (A)
1	1	Send Meter Report of energy (kWh)

102 - To set which reports need to be sent in Report group 2.

To set which reports need to be sent in Report group 2.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Send Meter Report of energy (kWh)
2	2	Send Meter Report of wattage (W)
4	4	Send Meter Report of voltage (V)
8	8	Send Meter Report of current (A)

103 - To set which reports need to be sent in Report group 3.

To set which reports need to be sent in Report group 3.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)

110 - Set parameter 111-113 to default value.

Set parameter 111-113 to default value.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset the parameter 111-113

111 - Set the interval of automatic report for Report group 1.

Set the interval of automatic report for Report group 1.

Size: 4 bytes

Default: 10

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

112 - Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 2.

Size: 4 bytes

Default: 600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

113 - Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 3.

Size: 4 bytes

Default: 600

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
1	2147483647	The range of interval time is 1 to 2147483647.

120 - Configure the external switch mode for S1.

Configure the external switch mode for S1.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

121 - Configure the external switch mode for S2.

Configure the external switch mode for S2.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

122 - Set the control destination for external switch

Set the control destination for external switch

Size: 1 byte

Default: 3

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
2	2	control the other nodes
1	1	control the output loads of itself.
3	3	control the output loads of itself and other nodes.

252 - Lock/unlock configuration parameters

Lock/unlock configuration parameters.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Unlock
1	1	Lock

255 - Reset the In-Wall Switch

Reset the In-Wall Switch to factory default.

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 0

Possible values

From	To	Desription
0	0	Reset all configuration parameters to factory default setting
1431655765	1431655765	Reset to factory default setting and removed from the z-wave network

Type	Name
Product or Owner's Manual	Oomi In-Wall Switch manual (FT116-C) - 2.pdf

Group	Type
Heat Alarm	(Refer to parameters): State idle
Power Management	(Refer to parameters): State idle

Meter type
Electric Meter Consumption
