EVA LOGIK
In-wall Smart Switch
ZW30
On/Off Power Switch
HW: 1 FW: 20.15
ZM5202
6.51.06
0x015D (349)
0xB111 (45329)
0x1E1C (7708)
ZC10-17045549
2017-04-17 20:39:05.534631
N/A
Routing Slave
Always On Slave
It is an In-wall type device controlled by Z-Wave controller and can be configured in Z-Wave sensor network,
It is an In-wall type device controlled by Z-Wave controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can control lights at home from your mobile phone separately, and manual On/Off light by push button .

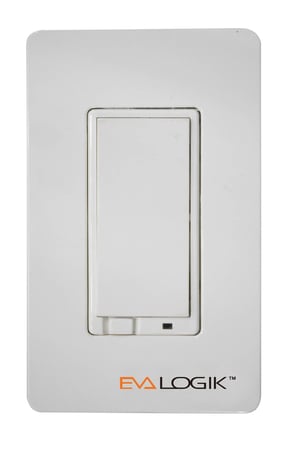

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the front button to exclude it from the network.
1. Press and hold the top button for at least 3 seconds while you apply AC power to this device. 2. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
