IHORN
Magnetic Contact
HO-09ZW
Notification Sensor
HW: 255 FW: 16.08
ZM5202
6.51.09
0x0320 (800)
0x0001 (1)
0x0001 (1)
ZC10-17085742
2017-05-31 18:54:51.522983
N/A
Routing Slave
Reporting Sleeping Slave
The Product will alarm you when the door/windows opened by others.
This Product apply the theory of magnetic control, when the magnet is separated from the main body from a certain distance (about 2 cm) between ,the main body will send out a wireless alarm signal automatically, in order to prevent someone break into the room from the door or window.

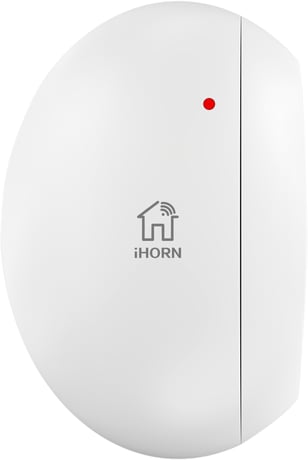

Product Picture
For Inclusion to a network: Put the Z-Wave Interface Controller into “Inclusion” mode, and following its instruction to include HO-09ZB to your controller. This magnetic contact needs to be included before installation. 1. Pull out the insulating strip, making the device power on. 2. Pressing the anti-tamper switch three times. 3. Red LED will blink three times while inclusion the network successful 4. If inclusion failed, the sensor will go into sleep mode. To wake the sensor again, you need to use magnet or anti-tamper switch to trigger an inclusion process, and then sensor will repeat steps from 3 to 4.
For Exclusion a network: Put the Z-Wave Interface Controller into “Exclusion” mode, and following its instruction to exclude magnetic contact from your Z-Wave controller. 1. Pressing the anti-tamper switch Triple then enter exclusion mode. 2. Red LED will blink three times when exclusion of the network is successful.
Press the anti-tamper switch once to wakeup the product.
Press the anti-tamper switch five times to reset. Note: Use this procedure only in the event that the primary controller is lost.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
