Inovelli
Smart Plug-In Module (1 Channel)
NZW36
On/Off Power Switch
HW: 0 FW: 20.15
ZM5202
6.51.06
0x0312 (786)
0xB211 (45585)
0x241C (9244)
ZC10-17045561
2017-04-25 19:17:14.778957
N/A
Routing Slave
Always On Slave
Smart Plug-In Module (1 Channel)
Inovelli's Smart Plug-In On/Off Module + Repeater has the ability to turn on and off appliances, lights, and more from anywhere in the world. In addition to the outlet, the smart plug acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network. This smart plug is one of the smallest plugs on the market (3.5"x2.5"x1.5") and has 1 Z-Wave Outlet on the side of the device and an "Always On" (non-smart outlet) on the other side, allowing for easy fit in compact places. Simplifying lives, one smart home product at a time... that's Inovelli.

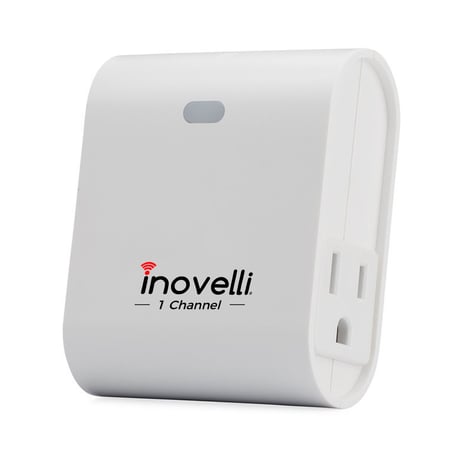

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to Include your device, press the center button 3-5 times within 3 seconds. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed. ** NOTE: If your product does not include at first, try moving the module closer to the HUB and try again -- you can move to your final location when complete For setup instructions for your specific HUB (ie: SmartThings, Wink, Vera, etc) please go to: www.inovelli.com/nzw36-setup
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press the center button 3-5 times within 3 seconds to exclude it from the network.
Use controller to remove device from network will reset it to factory default. ""Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.""
| Type | Value(s) |
|---|
