Swiid
Z-Wave remote control (aka RemSwiid)
SW-ZRC-1
Remote Control - Multi Purpose
HW: 1 FW: 1.02
SD3502
6.51.09
0x0166 (358)
0x0002 (2)
0x0001 (1)
ZC10-17115831
2017-05-22 17:39:41.867182
N/A
Portable Controller
Portable Controller
Yes
This Swiid® remote control - known as RemSwiid™ - is a battery-operated Z-Wave hand-held portable controller, using intercheangeable pictograms to identify the device/scene button
Battery operated hand-held Z-Wave remote control usable either as a primary or as a secondary controller (the latter in the network of another primary Z-Wave controller, e.g. an IP gateway). Can operate up to 8 different groups of Z-Wave devices (maximum 8 devices per group) or activate up to 8 scenes (as a secondary controller). Can create associations between two or more devices which are in the same Z-Wave network. Feedback through 12 LEDs. Covered in genuine leather (4 colours)with real wood (5 tints) and comes with a magnetic wall mounting clip. Works with 2 AA batteries (LR06).

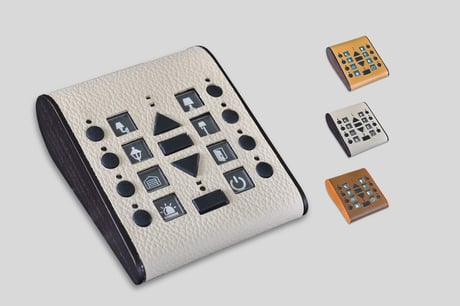

Product Picture
1 - Set priority Association Group number for an Association Source Node
1 = Association Group 1 (key A = AG#2) 2 = Association Group 2 (key A = AG#1)Size: 1 byte
Default: 1
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 2 | See above |
2 - Function of RemSwiid™ Device key A
0 = Disabled 1 = Basic/Multilevel Switch 2 2 = Control Central Scene 1 3 = Control Scene Activation 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
3 - Function of RemSwiid™ Device key B
0 = Disabled 1 = Basic/Multilevel Switch 3 2 = Control Central Scene 2 3 = Control Scene Activation 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
4 - Function of RemSwiid™ Device key C
0 = Disabled 1 = Basic/Multilevel Switch 4 2 = Control Central Scene 3 3 = Control Scene Activation 3Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
5 - Function of RemSwiid™ Device key D
0 = Disabled 1 = Basic/Multilevel Switch 5 2 = Control Door Locks 4 3 = Control Scene Activation 4Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
6 - Function of RemSwiid™ Device key E
0 = Disabled 1 = Basic/Multilevel Switch 6 2 = Control Central Scene 5 3 = Control Scene Activation 5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
7 - Function of RemSwiid™ Device key F
0 = Disabled 1 = Basic/Multilevel Switch 7 2 = Control Central Scene 6 3 = Control Scene Activation 6Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
8 - Function of RemSwiid™ Device key G
0 = Disabled 1 = Basic/Multilevel Switch 8 2 = Control Central Scene 7 3 = Control Scene Activation 7Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
9 - Function of RemSwiid™ Device key H
0 = Disabled 1 = Basic/Multilevel Switch 9 2 = Control Central Scene 8 3 = Control Scene Activation 8Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | See above |
10 - Send unsolicited Battery Report on Wake Up
0 = No 1 = To same node as wake up notification 2 = Broadcast to neighboursSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | See above |
11 - Dimming mode
0 = Continues dimming until “Stop” Command key is pressed 1 = Stops dimming when “Up” or “Down” Command key is releasedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | See above |
1. Put the primary Z-Wave controller in the inclusion mode (see user's manual of the controller) 2. Press and hold both the ""Up"" and ""Down"" command keys of the RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating the remote is in the Learn mode (aka Setup Mode) 3. Press once on the “All” key and the both the green and red LEDs will also light up to indicate that the inclusion process can begin. The 3 LEDs will then blink rapidly and turn off to indicate that the process has completed successfully. If not successful, the LEDs will remain lit solid until they time out after 30 seconds.
In order wake up the RemSwiid™ remote (force into the listening mode), press twice (2x) on the ""All"" key and the blue Z-Wave LED will light up and stay lit for 30 seconds. It is possible to exit the listening mode before the 30 seconds time out by pressing once on the Stop Command key and the blue Z-Wave LED will turn off accordingly
1. Press and hold both the “Stop” and “All” keys until the red and green LEDs both start blinking at the same time (after about 3 seconds) 2. Press three times (3x) on the “Up” command key of the RemSwiid™ remote and the blue Z-Wave LED will also light up. After about 2-3 seconds, the blue and red LEDs will turn off and the green LED will remain lit for 1-2 seconds indicating that the reset has been completed. Resetting the RemSwiid™ remote will result in its taking on a new randomly generated Home ID. Obviously, if the RemSwiid™ remote is the primary controller in the Z-Wave network, resetting it will result in the nodes in the network being orphaned and it will be necessary after the reset to exclude and re-include all the nodes in a network with a new Home ID. If the RemSwiid™ is being used as a secondary controller in the network, the reset procedure should only be used once it has been excluded from the network, except of course if such exclusion is not feasible (e.g. if the network’s primary controller is missing or otherwise inoperable).
1. Press and hold both the ""Up"" and ""Down"" command keys of the RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating you are in the Setup Mode. 2. Press again once (1x) but only the ""Up"" command key and the green LED in the centre of your RemSwiid™ will blink to indicate that it is now in the Inclusion Mode. 3. Put the Z-Wave device you want to include in program mode (sends out NIF) whereby the green LED of the remote will stay continuously lit up for 1-2 seconds to indicate success and then all the LEDs will turn off.
RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating you are in the Setup Mode. 2. Press again once (1x) but only the ""Down"" command key and the red LED in the centre of your RemSwiid™ will blink to indicate that it is now in the Exclusion Mode. 3. Put the Z-Wave device you want to exclude in program mode (sends out NIF) whereby the red LED of the remote will turn off and the green LED will then light up for 1-2 seconds to indicate success and after that all the LEDs will turn off.
