Mercury

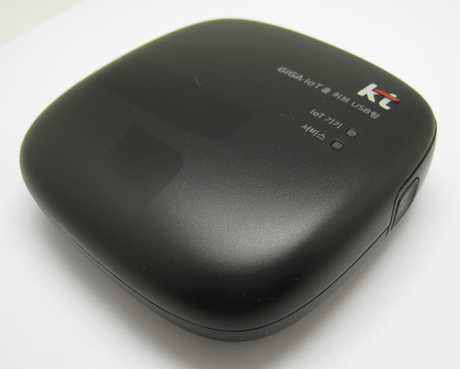

IoT Home Manager Hub(USB Type)
MC02-612ZD
Central Controller
HW: 1 FW: 1.02:01.02
ZM5101
6.61.00
0x022D (557)
0x0100 (256)
0x0001 (1)
ZC10-17055577
2017-05-01 22:28:08.480802
N/A
Bridge Controller
Central Static Controller
MC02-612ZD is universal controller which can control the several control group device.
MC02-612ZD is universal controller which can control several home control group devices. It can control the gas valve, the digital door-lock, the smart plug and the door sensor that are supported by the KT.
Using the Emulator 1. Open the Emulator 2. Set Device Information 3. Select Learn mode Command 4. Click Send button
If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. 1. Press a reset button until All LEDs are off 2. Automatically reboot
1. Press a push button one time 2. If include process in progress, Z-Wave LED is blinking 3. When include process in successful, Z-Wave LED is solid
1. Press a push button for more than 5 seconds 2. If exclude process in progress, Z-Wave LED is blinking 3. When exclude process in successful, Z-Wave LED is off
