LG Uplus

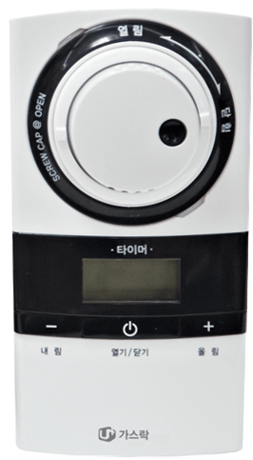

Smart Gas Controller
GCR-01
Valve
HW: 1 FW: 39.132
ZM5101
6.61.00
0x018B (395)
0x0040 (64)
0x0001 (1)
ZC10-17055595
2017-05-18 20:00:00.931391
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Gas Valve Remote Locker
U+ Gas lock helps users easily check and turn off the gas valves in home from anywhere. It detects dangerous temperature and alerts potential danger situations so that users can handle a problem. In addition, users can set time to lock gas valves against danger.
1 - Sound volume setting
0x00: Mute, 0x01: Minimum sound volume, 0x02: Default sound volume, 0x03: Maximum sound volume,Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Sound volume setting |
2 - Valve auto lock time setting
This must be done when the Gas valve is open. Upper byte value: hour, Lower byte value: minute, Setting Range : 2min ~9hr 59min (0x0002 ~ 0x093B)Size: 2 bytes
Default: 256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2363 | 00(0hr)02(2min) ~ 09(9hr)3B(59min) |
This must be done when the Gas valve is closed. After doing inclusion action on controller, then hold 5 seconds (-) button until you hear a beep once and ‘P’ is blinking on LCD.
This must be done when the Gas valve is closed. After doing exclusion action on controller, then hold 5 seconds (-) button until you hear a beep once and ‘P’ is blinking on LCD.
Please use this only when the primary controller is missing or otherwise disabled. This must be done when the Gas valve is closed. Hold 15 seconds (-) button until you hear a beep once and ‘FS’ is displayed on LCD.
| Type | Value(s) |
|---|
