LG Uplus
IoT Hub
GWG-02
Central Controller
HW: 1 FW: 39.48:39.16
ZM5101
6.61.00
0x018B (395)
0x0002 (2)
0x0001 (1)
ZC10-17055597
2017-05-18 21:59:12.539736
N/A
Static Controller
Central Static Controller
Universal Controller for controlling Notification Sensors, On/Off Switches, Valves, Open/Closed and Door Lock products.
LGUplus IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of notification sensor, On/Off switch, Valve, Open/Closed and Door Lock products made for LGUplus. Other products made as general Z-Wave plus standard can be controlled with limited function. This is USB dongle type connected to LGUplus Home Gateway.

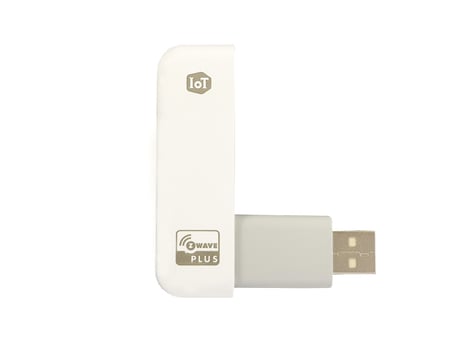

Product Picture
- To enter Learn Mode : Run ‘LearnMode’ in Setting, then click YES.
- Run ‘ZW_SET_DEFAULT’ in Setting, then click YES of UZB PoP UP - Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. - If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
- To Add : Run ‘Inclusion’ in Setting, then click YES of Inclusion PoP UP and then run inclusion of Slave device.
- To Delete : Run ‘Exclusion’ in Setting, then click YES of Exclusion PoP UP and then run exclusion of Slave device.
| Type | Value(s) |
|---|
