LG Uplus
Smart Plug
SPES-02
On/Off Power Switch
HW: 1 FW: 39.128
ZM5101
6.61.00
0x0247 (583)
0x0042 (66)
0x0001 (1)
ZC10-17055591
2017-05-10 02:48:07.294936
N/A
Enhanced 232 Slave
Always On Slave

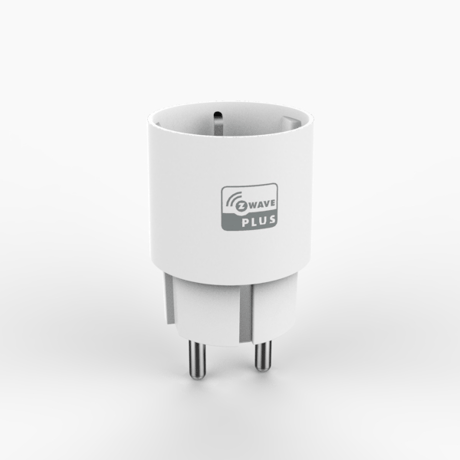

Smart- Plug plugs in between any appliance and the AC outlet.
Smart- Plug plugs in between any appliance and the AC outlet. It measures its power consumption & sends that information to your smartphone . It can also control power source connected with appliance manually and remotely using smartphone.
1 - standby power
First 3 Bytes : Standby Power Setting Value Last 1 Byte : Standby Power Enable/Disable If the value is set by 1000, standby power equals 10.00w (0x0003E8) and standby power enable is 1. total 0x0003E801Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | standby power disable |
| 257 | 524033 | standby power enable with 0.01 to 20.47 W Standby |
2 - meter transmit
Periodic Measurement Value Transmission Enable/DisableSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Periodic Measurement Value Transmission Enable |
| 0 | 0 | Periodic Measurement Value Transmission Disable |
3 - power accumulation mode
Power Accumulation Start/StopSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power Accumulation Stop |
| 1 | 1 | Power Accumulation Start |
4 - device usage
Connected Device Use / Not UseSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Connected Device Use |
| 0 | 0 | Connected Device Not Use |
5 - meter transmit interval
Periodic Measurement Value Transmission Interval Minimum time interval : 10minutes Value : 1 (10minutes * 1) = 10minutes interval Value : 2 (10minutes * 2) = 20minutes interval …….. Value : 127(10min * 72) = 720 minutes interval =>MAXSize: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 72 | 10min to 720 min |
1. Put your Z-Wave controller into inclusion mode. 2. Plug the SmatPlug into the power outlet. 3. Press and hold on/off button about 5 seconds. 4. Orange LED will be flashing about 2 seconds, then inclusion process will be start. 5. Wait until inclusion will be done.
1. Put your Z-Wave controller into exclusion mode 2. Plug the SmatPlug into the power outlet. 3. Press and hold on/off button about 5 seconds. 4. Orange LED will be flashing about 2 seconds, then exclusion process will be start. 5. Wait until exclusion will be done.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Plug the SmatPlug into the power outlet. 2. Press and hold on/off button about 10 seconds. 3. Orange LED will be flashing about 2 seconds, then factory reset process will be start.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Meter type |
|---|
| Electric Meter Consumption |
