Beanbag
Beanbag Thermostat Receiver
MAX10Z-737
Thermostat - HVAC
HW: 2 FW: 2.00
ZM5202
6.61.00
0x0059 (89)
0x0014 (20)
0x0001 (1)
ZC10-17055592
2017-05-17 22:30:09.5681
N/A
Enhanced 232 Slave
Always On Slave
The Beanbag Receiver is mains powered wireless two-channel programmable thermostat / programmer, which controls the space heating and hot water system. It also provides a boost facility for Beanbag heat and hot water.
The Beanbag receiver is a wireless two-channel thermostat / programmer, which can be used to control the heating and hot water system. Channel 1 is used for heating with Channel 2 being used for heating or hot water. Contact rating is 3A 230V AC, 1 A reactive. The receiver is mains powered 230V AC 50Hz only. A 7 day schedule facility is possible; each day can have different times and temperatures. TPI control is provided for Gas, Oil or Electrical Boilers with 3, 6 or 9 cycles per hour respectively. A one day override (on or off) facility is provided for heating and hot water. Thermostat failsafe is covered with the provision of a backup temperature sensor. The receiver is wall mounted using a plate with an optional facia plate; it is push on / pull off with the provision of a safety cover to ensure no mains access when removed. An optional surface wiring plate is also provided. Enclosure protection is to IP30 with an operating temperature range of 0⁰C to 40⁰C.

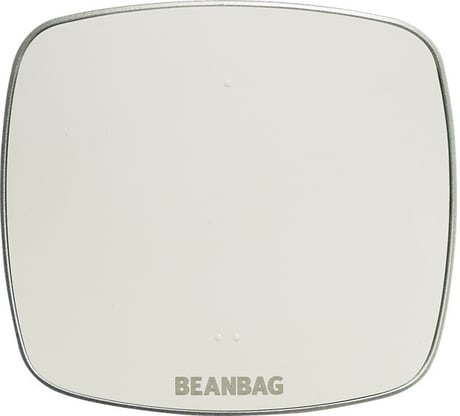

Product Picture
1 - Setpoint Upper Limit (endpoint 1)
Max setpoint in ºC that can be used for endpoint 1.Size: 1 byte
Default: 35
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 90 | in degree centigrade. |
2 - Setpoint Lower Limit (endpoint 1)
Min setpoint in ºC that can be used for endpoint 1.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 40 | in degree centigrade. |
3 - Button override duration
When local override is initiated by user using the buttons on the device, the device will remain in manual override for the duration defined in this parameter. After this duration or any further updated information received over ZWave will cancel this override.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 120 | in minutes. |
4 - Relay State on Power (Switch endpoint only)
Relay state on every power up (For Binary Switch endpoint 2). 0: Relay OFF 1: Relay ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Boolean. |
5 - Dynamic endpoint 2 device type
Dynamic endpoint 2 device type 0: Thermostat 1: Binary SwitchSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Value 0 = Thermostat, 1 = Binary Switch |
6 - Time sync
Time sync (minutes past midnight, in 2 minute intervals)Size: 1 byte
Default: 65
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 60 | 120 | in 2 minutes steps. |
7 - Heating TPI Cycle
Heating TPI Cycle 1: 3 cycles per hour 2: 6 cycles per hour 3: 9 cycles per hour 4: 12 cycles per hourSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 4 | Value 1 = 3 cycles per hour, 2 = 6 cycles per hour, 3 = 9 cycles per hour and 4 = 12 cycles per hour |
1. Put network controller in Inclusion mode. 2. Hold the button on the top of the Beanbag Receiver for more than 2 seconds until the Network Indicator LED turns red then release the button to put the Beanbag Receiver into Learn Mode. 3. Beanbag Receiver will indicate success with sold white Network LED.
1. Put network controller in Exclusion mode. 2. Hold the button on the top of the Beanbag Receiver for more than 2 seconds until the Network Indicator LED turns red then release the button to put the Beanbag Receiver into Learn Mode. 3. Beanbag Receiver will indicate success with flashing white Network LED (3Sec ON and 30Sec OFF).
Long press the bottom button (located underside the unit) for around 4 Sec until the Network indicator LED turns red then release the button. This function should only be used in case of primary controller is missing or inoperable.
1. The product supports dynamic endpoint configuration for Thermostat or Switch at endpoint 2. 2. Learning algorithm used to track the temperature in case if primary sensor is not communicating.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
