Zipato
Smart energy plug-in switch
ph-pan16.eu
On/Off Power Switch
HW: 1 FW: 1.03
SD3502
6.51.09
0x0131 (305)
0x0001 (1)
0x0029 (41)
ZC10-17055605
2017-05-22 22:55:52.158502
N/A
Enhanced 232 Slave
Always On Slave
The product documentation states a Security Enabled Z-Wave Controller must be used in order to fully utilize the product. Smart Energy Plug In Switch is a security enabled wireless switch, based on Z-Wave Plus technology.
The product documentation states a Security Enabled Z-Wave Controller must be used in order to fully utilize the product. Smart Energy Plug In Switch is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus enabled devices displaying the Z-Wave Plus logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because the Switch supports Security Command Class, it can learn with Secured controller. Its functionality and supported command classes is identical when included as a secure and non-secure device. This Smart Energy Plug In Switch is able to detect instance wattage (3000W/230Vac) (13Ampere) and overload current (14.5A with resistive load) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and reconnect the switch will reset its overload condition to normal status.

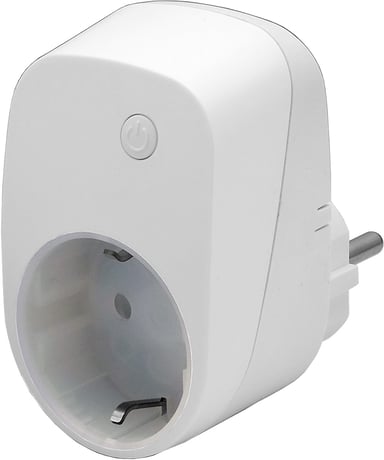

Product Picture
1 - Watt Meter Report Period
If the setting is configured for 1hour (set value =720), the Switch will report its instant power consumption every 1 hour to Group1 node. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr). When the setting is set at 0, the Switch will disable Watt auto report function. The default value is 720.Size: 2 bytes
Default: 720
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: Disable Watt Report |
| 1 | 32767 | 1~32767:5s~45h |
2 - KWH Meter Report Period
If the setting is configured for 1hour (set value =6), the Switch will report its Accumulated Power Consumption (KW/h) every 1 hour to Group1 node. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days). When the setting is set at 0, the Switch will disable KWH auto report function. The default value is 6.Size: 2 bytes
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: Disable KWh Report |
| 1 | 32767 | 1~32767:10min~227 days |
3 - Threshold of current for Load caution
This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, Swtich will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300.Size: 2 bytes
Default: 1300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 1300 | 1300*0.01A = 13A |
4 - Threshold of KWh for Load caution
This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, the Switch will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh.Size: 2 bytes
Default: 10000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10000 | 10000*1KWh = 1000 KWh |
5 - Restore switch state mode
Whenever the AC power return from lost, the Switch will restore the switch state which could be SWITCH OFF, LAST SWITCH STATE, SWITCH ON. The default setting is LAST SWITCH STATE.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Switch off |
| 1 | 1 | 1 : Last switch state |
| 2 | 2 | 2 : Switch on |
6 - Mode of Switch Off function
When the mode of switch On/Off is set to 0, any command of switch off will be disabled and the On/Off function of include button will be disabled. The default setting is enable mode. When manual On/Off function is disabled, the RF command can only switch On but not Off. This is useful function for keeping the device in switch on state.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: Disable |
| 1 | 1 | 1: Enable |
7 - LED indication mode
1.SHOW SWITCH STATE: When the Switch is on, LED is on. When the Switch is off, LED is off. The default setting is Show Switch State. 2.SHOW NIGHT MODE: When the Switch is on, LED is off. When the Switch is off, LED is on. 3.ONE FLASH MODE: When the state of the Switch changes, LED will turn on for 1 second.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1 : Show switch state |
| 2 | 2 | 2 : Show night mode |
| 3 | 3 | 3: One flash mode |
8 - Auto off timer
Whenever the Switch switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch to off automatically. However if Auto off timer is set as 0, the auto off function will be disabled.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Disable auto off function |
| 1 | 32767 | 1-0x7FFF : 1s ~ 32767s |
9 - RF off command mode
Whenever a switch off command, BASIC_SET, BINARY_SWITCH_SET, SWITCH_ALL_OFF, is received, it could be interpreted as 4 variety of commands. The default setting is Switch Off. 1.SWITCH OFF: It switches to OFF state. The default setting is Switch Off. 2.IGNORE: The switch off command will be ignored. 3.SWITCH TOGGLE: It switches to the inverse of current state. 4.SWITCH ON: It switches to ON state.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Switch off |
| 1 | 1 | 1 : Ignore |
| 2 | 2 | 2 : Switch toggle |
| 3 | 3 | 3 : Switch on |
11 - Manual Switch Report Mode
The default setting is Enable the function. Whenever the Switch is manually switched on or off, it will send BINARY_SWITCH_REPORT to the node of group1.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Disable |
| 1 | 1 | 1 : Enable |
12 - Auto Report after Reset
Whenever the Switch is repowered, it will check this parameter for if sending a BINARY_SWITCH_ REPORT to the node of group1 or not. The default setting is Disable the function.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 : Enable |
| 1 | 1 | 1 : Disable |
13 - Adjustable overload
The overload current can be adjustable from 4.5A to 14.5A. The default value is 1450 for 14.5A. (1450 * 0.01A = 14.5A).Size: 2 bytes
Default: 1450
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 450 | 1450 | 1450*0.01A = 14.5A |
Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. Pressing On/Off button three times within 2 seconds will enter inclusion mode.
Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. Pressing On/Off button three times within 2 seconds will enter exclusion mode. Node ID has been excluded.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. Pressing On/Off button three times within 2 seconds will enter inclusion mode. Within 1 second, press On/Off button again for 5 seconds. IDs are excluded.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
