Zipato
Micromodule Energy Meter, Z-Wave
ph-pab01
Whole Home Meter - Simple
HW: 1 FW: 1.02
SD3502
6.51.06
0x0131 (305)
0x0006 (6)
0x001A (26)
ZC10-17065646
2017-06-08 04:18:18.263988
N/A
Enhanced 232 Slave
Always On Slave
Zipato Energy Meter monitors total electricity consumption of connected appliances and reports it to Zipato or any other Z-Wave enabled controller in real time.
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Zipato Energy Meter monitors total electricity consumption of connected appliances and reports it to Zipato or any other Z-Wave enabled controller in real time. Small and compact size allows easy installation in majority of electricity distribution boxes. It supports two loads upto 6000W each (@ 120V).

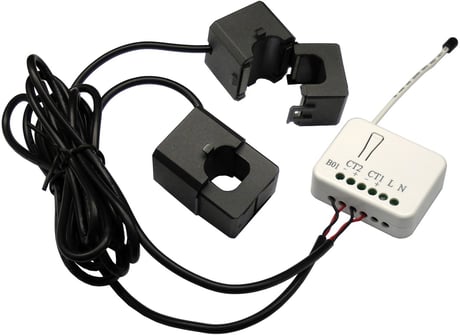

Product Picture
1 - Watt Meter Report Period
If the setting is configured for 1hour (set value =720), Micromodule will report its instant power consumption every 1 hour to the node of correspond Group. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr).Size: 2 bytes
Default: 720
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | 5*720s=3600s=1hour |
2 - KWH Meter Report Period
If the setting is configured for 1hour (set value =720), the PAB01 will report its Accumulated Power Consumption (KW/h) every 1 hour to the node of correspond Group. The maximum interval to report its Accumulated Power Consumption (KW/h) is 45 hours (5s*32767/3600=45hr).Size: 2 bytes
Default: 720
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | 5*720s=3600s=1hour |
3 - Slected End Point
If Controller not using Multi_Channel command class to access the endpoint of Micromodule, you may configure the endpoint value to react the Basic Command Class, Binary Switch Command Class or Meter Command Class V3. 1. SELECTED ENDPOINT 1: Report the Meter Value as CT1+CT2. Defauly selected endpoint is 1. 2. SELECTED ENDPOINT 2: Report the Meter Value of CT1. 3. SELECTED ENDPOINT 3: Report the Meter Value of CT2.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1: CT1 and CT2 |
| 2 | 2 | 2: CT1 |
| 3 | 3 | 3: CT2 |
4 - Threshold of Current for Load Caution
This is a warning when the current of load over the preset threshold value, If the setting value is 750, when the load wattage of CT1 or CT2 over 7.5A, Micromodule will send current Meter Report command to the node of correspond Group.Size: 2 bytes
Default: 750
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 750 | 750*0.01A=7.5A |
5 - Threshold of KWH for Load Caution
This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of CT1 or CT2 over this value, Micromodule will send KWh Meter Report command to the node of correspond Group, minum value is 1KWh and default value is 10000 kWh.Size: 2 bytes
Default: 10000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10000 | 10000*1KWh = 10000KWh |
Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. Pressing On/Off (Include) button three times within 2 seconds will enter inclusion mode.
Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. Pressing On/Off (Include) button three times within 2 seconds will enter exclusion mode. Node ID has been excluded.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. Pressing On/Off (Include) button three times within 2 seconds will enter inclusion mode. Within 1 second, press and hold On/Off (Include) button again for 5 seconds until LED is off. IDs are excluded.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
