LG U+

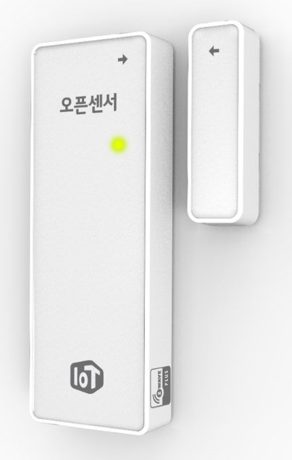

Open Sensor
OSR-01
Notification Sensor
HW: 1 FW: 39.20
ZM5101
6.61.00
0x022c (556)
0x0003 (3)
0x0001 (1)
ZC10-17065639
2017-05-25 18:17:57.138788
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Detecting the Door/Window status(open/close) in real time and anywhere.
Remote Access via smart phone APP Detecting the status of Door/Windows equipped with Z-WAVE Open Sensor and notifying the status to a customer. Checking the battery usage and reporting the low battery alarm.
1 - Battery Period
Battery Report Period Value. The battery report period is in 15 minute increments. For example, the default value of 24 * 15 minutes = 360 minutes or 6 hours.Size: 1 byte
Default: 24
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Default 24 (0x18), 0x01~0xFF in 15 minute increments |
a. Press & hold Inclusion/Exclusion button for 5 seconds when Open Sensor is exclusion status. b. LED of Open sensor will be on 5 seconds later. c. Open sensor will try Inclusion for 30sec when button is released. d. LED will blink 3 times if Inclusion is successful.
a. Receiver will stay exclusion waiting mode. b. Press & hold Inclusion/Exclusion button for 5 seconds when Open Sensor is Inclusion status. c. LED of Open sensor will be on 5 seconds later. d. Open sensor will try Exclusion when button is released. e. LED will blink 3 times if Exclusion is successful.
a. Device sends Wake up Notification by every 15 minutes. b. Devices also sends Wake up Notification when inclusion/exclusion button is shortly pressed regardless of 15minutes interval.
a. Press & hold Inclusion/Exclusion button for 10sec. b. LED will blink while holding the button. c. Factory reset will be done in 5sec after releasing button and LED will blink 5 times. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
a. Firmware auto upgrade via OTA.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
