Climax Technology
Bellbox
BX-35ZW
Siren
HW: 255 FW: 1.04
ZM5101
6.61.00
0x018E (398)
0x0002 (2)
0x0011 (17)
ZC10-17055618
2017-05-26 16:31:35.563543
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
BX-35ZW bell box is a battery-operated wireless outdoor siren generating a loud 105 decibel siren sound and strobe lights during an alarm to provide visible and audible alerts. Encased in a durable, IPX5 waterproof elegant design, easy-to-install BX-35ZW is a premium choice for the modern smart home.
BX-35ZW bell box is a battery-operated wireless outdoor siren generating a loud 105 decibel siren sound and strobe lights during an alarm to provide visible and audible alerts. Encased in a durable, IPX5 waterproof elegant design, easy-to-install BX-35ZW is a premium choice for the modern smart home. The BX-35ZW is energy saving and environmentally conscious, requiring only two Alkaline batteries, yet still has a long battery life of up to 3.5 years. The BX-35ZW generates unique alarm sounds for fire and burglary to inform users of the type of danger at hand. It provides programmable siren duration of 3, 5, and 10 minutes. In addition to producing audible and visible warnings in the case of emergency, the BX-35ZW emits beep notifications for arming and disarming of a security system, and of its low battery status. It’s tamper-deterrent feature protects against unauthorized removal and sabotage. The BX-35ZW is compatible with others’ Z-Wave systems.

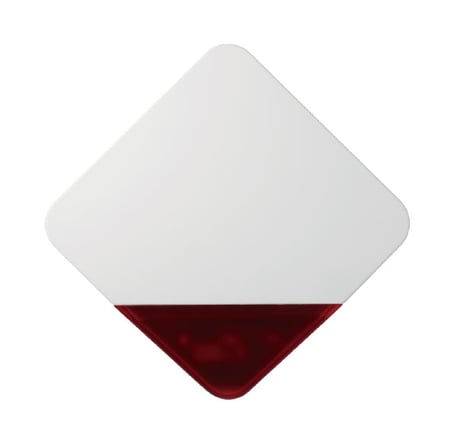

Product Picture
1 - Alarm Length
Maximum siren length. 0x01~0x0A (1~10 min), default 0x0A.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | 1 minute to 10 minutes |
2 - Alarm LED Flash
Upon siren trigger, LED flash enable/disable. 0x00: disable, 0x01: enable; default 0x01Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 0:disable, 1: enable |
3 - Comfort LED
Comfort LED flash every sec, 0~250sec, each unit is 10 sec. 0x00~0x19 (disable, 10sec,…,250sec) default:0x00Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 25 | 0 sec to 250 sec, the unit is 10 sec |
4 - Tamper
Tamper Enable/Disable 0x00:disable, 0x01: enable default 0x01Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 0:disable, 1: enable |
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. -Insert the two 1.5V D-Cell alkaline batteries into the battery compartment connecting the correct polarity as shown on the battery compartment lid.The Bellbox will emit a 2-tone beep. -Put the Z-Wave gateway or control panel into Inclusion mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function Button 3 times. -Refer to the operation manual of the Z-Wave Gateway or Control Panel to complete the adding process. -If the sensor has already been added (included) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be added into the current Z-Wave Gateway/Control Panel, please exclude it first (see Removing Device) before attempting to include it into the current Z- Wave Gateway/Control Panel.
The Bellbox must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. -Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function Button 3 times and the Bellbox will be removed from the Z-Wave network.
(Only use factory reset when network Control Panel/Gateway is missing or inoperable). -Press and hold the Function button of the Bellbox for 10 seconds to factory reset with all LED flashes once. <NOTE> -Factory resetting the Bellbox will restore it to factory default settings (excluded from the Z-Wave network). The Z-Wave gateway or control panel will still keep its Z-Wave settings. Please refer to the gateway or control panel manual on how to remove the Bellbox’s Z- Wave settings.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
