Zipato
Keyfob 5 Remote, Z-Wave
ph-psr03.eu
Remote Control - AV
HW: 1 FW: 1.12:01.05
SD3502
6.51.02
0x0131 (305)
0x0008 (8)
0x001D (29)
ZC10-17065643
2017-06-07 22:40:50.815995
N/A
Enhanced 232 Slave
Portable Slave
Yes
Zipato Z-Wave Remote is a simple controller for controlling AV device through Z-Wave-to-IR extender, and it can also control 8 ON/OFF lighting groups via basic set, based on Z-Wave technology.
Zipato Z-Wave Remote is a simple controller for controlling AV device through Z-Wave-to-IR extender, and it can also control 8 ON/OFF lighting groups via basic set, based on Z-Wave technology. It is the Z-Wave plus product, it support the security, OTA... all the newest features of the Z-Wave technology.

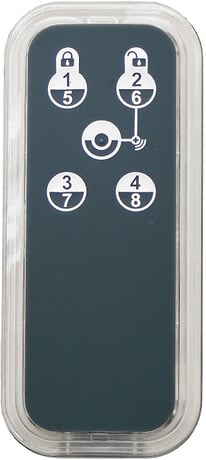

Product Picture
2 - Basic Set Level
Setting the BASIC command value to turn on the light. The xFF(-1) means turn on the light. For dimmer equipment 1 to 100 means the light strength. 0 means turn off the light.Size: 1 byte
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Setting the BASIC command value to turn on the light. |
7 - Customer Function
Customer function switch, using bit control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Switch AV control/ Lighting group control. |
10 - Auto Report Battery Time
The interval time for auto report the battery level.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | 0 means turn off auto report battery.Each tick means 30 minutes.The default value is 12(6 hours). |
82 - Association Group 2 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
83 - Association Group 3 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 3.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
84 - Association Group 4 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
85 - Association Group 5 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 5.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
86 - Association Group 6 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 6.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
87 - Association Group 7 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 7.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
88 - Association Group 8 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 8.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
89 - Association Group 9 Basic Set Level
Setting the BASIC command value to turn on the light in the association group 9.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 means using the value of configuration 2 to set. |
After the device is added to the network, it will wake-up once per day in default. When it wakes up it will broadcast the “Wake Up Notification” message to the network, and wake-up 10 seconds to receive the setting commands. To wake-up the device immediately, please hold down the central key, then press the top-right key once within. The device will wake-up for 10 seconds.
Use this procedure only in the event that the primary controller is lost or otherwise inoperable. Hold down the central key, then press the top-right key 4 times within 1.5 seconds and during 4th press, hold the key until LED lights up. After 3 seconds the LED will turn OFF, and after next 2 seconds, release the tamper key. If successful, the LED will light ON for second. Otherwise, the LED will flash once. IDs are excluded and all settings will reset to factory default.
Put the Z-Wave Controller in inclusion mode. Hold down the central key, then press the top-right key 3 times within 1.5 seconds to enter inclusion mode. After successful inclusion, the device will wake to receive the setting command from Z-Wave Controller in about 20 seconds.
Put the Z-Wave Controller in exclusion mode. Hold down the central key, then press the top-right key 3 times within 1.5 seconds to enter exclusion mode. Node ID has been excluded.
