Aeotec
Water Sensor 6
ZW122-C
Notification Sensor
HW: 122 FW: 1.01
ZM5101
6.51.09
0x0086 (134)
0x0002 (2)
0x007A (122)
ZC10-17055615
2017-05-23 05:52:06.242198
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Aeon Labs Water Sensor 6 is a Z-Wave water sensor, which can detect whether there is water leak in some places of your home.
Aeotec by Aeon Labs Water Sensor 6 brings intelligence to a new level, one that is suited to both safety and convenience. It contains 4 sensing points, which would be more accurately to detect the presence and absence of water or detect whether there is water leak in some places of your home. The Water Sensor 6 has an inbuilt buzzer that can play alarm sounds to let you know when the water is detected. The Water Sensor 6 is also a security Z-Wave device that supports Over The Air (OTA) for firmware updates.

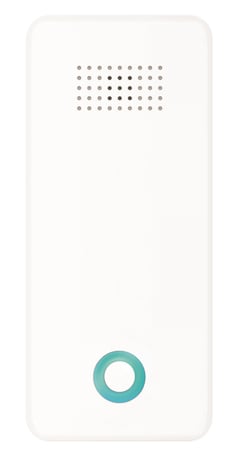

Product Picture
2 - Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor.
Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable. |
| 0 | 0 | Disable |
8 - Set the timeout of awake after the Wake Up CC is sent out..
Set the timeout of awake after the Wake Up CC is sent out..Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 8 | 127 | Available rang is 8 to 127 seconds. |
9 - Report the current power mode and the product state for battery power mode
Report the current power mode and the product state for battery power mode. Note: this parameter cannot be used as Set usage.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 257 | 257 | Keep awake for 10 minutes for battery power mode. |
| 256 | 256 | Keep sleep state for Battery power mode |
| 0 | 0 | USB power mode |
10 - Set the alarm time for the Buzzer when the sensor is triggered.
Set the alarm time for the Buzzer when the sensor is triggered.Size: 4 bytes
Default: 101968650
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Repeated cycle of Buzzer alarm. |
| 256 | 65535 | the time of Buzzer keeping ON state (MSB) |
| 65536 | 2147483647 | The time of Buzzer keeping OFF state |
39 - Configure the default low battery value.
Configure the default low battery value. When the current battery level is lower than this value, it will send out the low battery alarm.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Available rang is 10% to 50%. |
48 - Enable/disable the sensor report
Enable/disable the sensor reportSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable. |
49 - Set the upper limit value (overheat).
Set the upper limit value (overheat).Size: 4 bytes
Default: 68157696
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius unit |
| 1 | 1 | Fahrenheit unit |
| 65536 | 2147483647 | Temperature value |
50 - Set the lower limit value (under heat)
Set the lower limit value (under heat)Size: 4 bytes
Default: 20971776
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Celsius unit |
| 1 | 1 | Fahrenheit unit |
| 65536 | 2147483647 | Temperature value |
57 - Set the recover limit value of temperature sensor.
Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement <= (Upper limit – Recover limit). 2. When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 3. High byte is the recover limit value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit).Size: 2 bytes
Default: 5121
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 255 | Available rang is 1.0℉ to 25.5℉ |
64 - Set the default unit of the automatic temperature report in parameter 101-103.
Set the default unit of the automatic temperature report in parameter 101-103.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | The unit is Fahrenheit. |
| 0 | 0 | The unit is Celsius. |
84 - Get the state of tilt sensor
Get the state of tilt sensor. Note: this is a Get-only parameter.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The Water Sensor main unit is in horizontal direction. |
| 1 | 1 | The Water Sensor main unit is in vertical direction. |
86 - Enable/ disable the buzzer.
Enable/ disable the buzzer.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable |
| 0 | 0 | Disable |
87 - To set which sensor is triggered the buzzer will alarm.
To set which sensor is triggered the buzzer will alarm.Size: 4 bytes
Default: 55
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | If the Water leak is triggered, the buzzer will alarm. |
| 2 | 2 | If the vibration is triggered, the buzzer will alarm. |
| 4 | 4 | If the tilt sensor is triggered, the buzzer will alarm. |
| 16 | 16 | If the under heat is triggered, the buzzer will alarm |
| 32 | 32 | If the overheat is triggered, the buzzer will alarm. |
88 - To set which value of the Basic Set will be sent to the associated nodes in association Group 3 when the Sensor probe 1 is triggered.
To set which value of the Basic Set will be sent to the associated nodes in association Group 3 when the Sensor probe 1 is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send nothing |
| 1 | 1 | Presence of water, send Basic Set 0xFF, absence of water, send Basic Set 0x00. |
| 2 | 2 | Presence of water, send Basic Set 0x00, absence of water, send Basic Set 0xFF. |
89 - To set which value of the Basic Set will be sent to the associated nodes in association Group 4 when the Sensor probe 2 is triggered.
To set which value of the Basic Set will be sent to the associated nodes in association Group 4 when the Sensor probe 2 is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Presence of water, send Basic Set 0x00, absence of water, send Basic Set 0xFF. |
| 0 | 0 | Send nothing. |
| 1 | 1 | Presence of water, send Basic Set 0xFF, absence of water, send Basic Set = 0x00. |
94 - To set which power source level is reported via the Battery CC.
To set which power source level is reported via the Battery CC.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | report the USB power level. |
| 1 | 1 | report the CR123A battery level. |
101 - To set what unsolicited report would be sent to the Lifeline group.
To set what unsolicited report would be sent to the Lifeline group.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 3 | Battery Report and Multilevel sensor report for temperature are enabled. |
| 1 | 1 | Battery Report is enabled. |
| 0 | 0 | Send Nothing |
| 2 | 2 | Multilevel sensor report for temperature is enabled. |
111 - To set the interval time of sending reports in Report group 1
To set the interval time of sending reports in Report group 1. Note: 1. The unit of interval time is second if USB power. 2. If battery power, the minimum interval time is equal to Wake Up interval set by the Wake Up CC.Size: 4 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | Available rang is 5 to 2678400 seconds. |
135 - To set which sensor report can be sent when the water leak event is triggered and if the receiving device is a non-multichannel device.
To set which sensor report can be sent when the water leak event is triggered and if the receiving device is a non-multichannel device.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send nothing |
| 3 | 3 | Send notification report to association group 1 and Send configuration 0x88 report to association group 2. |
| 1 | 1 | Send notification report to association group 1. |
| 2 | 2 | Send configuration 0x88 report to association group 2. |
136 - When the parameter 0x87 is set to 2 or 3, it can get the sensor probes’ status through this configuration value.
When the parameter 0x87 is set to 2 or 3, it can get the sensor probes’ status through this configuration value. Note: This parameter is a Get- only parameter.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | absence of water is triggered by probe 1. |
| 1 | 1 | presence of water is triggered by probe 1. |
| 2 | 2 | presence of water is triggered by probe 2. |
201 - Temperature sensor calibration
Temperature sensor calibration. Note: 1. High byte is the calibration value. Low byte is the unit (0x00=Celsius, 0x01=Fahrenheit) 2. The calibration value (high byte) contains one decimal point. E.g. if the value is set to 20 (0x1400), the calibration value is 2.0 ℃ (EU/AU version) or if the value is set to 20 (0x1401), the calibration value is 2.0 ℉(US version) 3. The calibration value (high byte) = standard value - measure value. E.g. If measure value =25.3℃ and the standard value = 23.2℃, so the calibration value= 23.2℃ - 25.3℃= -2.1℃ (0xEB). If the measure value =30.1℃ and the standard value = 33.2℃, so the calibration value= 33.2℃ - 30.1℃=3.1℃ (0x1F).Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Available rang is -12.8℃ to 12.7℃. |
252 - Enable/disable all configuration parameters to be locked
Enable/disable all configuration parameters to be locked.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enable. |
| 0 | 0 | Disable |
255 - Reset to factory defaults.
Reset to factory defaults.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1431655765 | 1431655765 | Reset the product to factory defaults. |
| 1 | 1 | Reset all configuration parameters to factory defaults. |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find on the product.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find on the product.
Pressing the Action Button once will trigger sending the Wake up notification command. If press and hold the Z-Wave button for 3 seconds, the Water Sensor will wake up for 10 minutes.
Press and hold the Action Button that you can find on the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | (Refer to parameters): State idle |
| Water Alarm | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Water Flow |
