LG U+
Siren
SIR-01
Siren
HW: 18 FW: 39.36
ZM5101
6.61.00
0x022C (556)
0x004E (78)
0x0001 (1)
ZC10-17065638
2017-05-25 18:18:49.590632
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

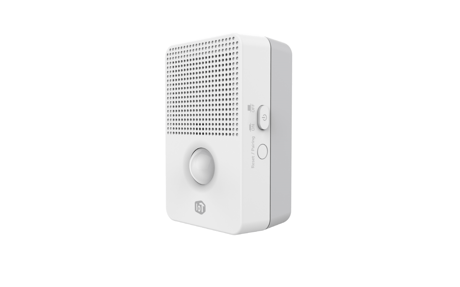

Siren can detect the movement by infrared sensor or can detect the movement along with open sensor. Alarm will be sounded once movement is detected. A Z-Wave controller can be used for adjusting sound of alarm, or to turn it on/off, etc.
Siren will detect the movement of people or animals in real time and then report it to Z-Wave gateway (LTE Router) through the Z-Wave protocol. It Will be used with AA Battery, Battery life time is 1year. And it can be installed easily by using double side tape.
1 - Alarm function On/OFF
Enables or Disables the alarm function. To enable, use the hex value 0xFF which is -128.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Alarm function off |
| -128 | -128 | Alarm function on |
2 - Alarm Sound level control
- 0x00 : Mute - 0x01 : Level 1 - 0x02 : Level 2 - 0x03 : Level 3 - 0x04 : Level 4 - 0x05 : Level 5 (Max)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The alarm sound is muted |
| 1 | 5 | The alarm sound is set to level 1 through 5 (Maximum) |
3 - Alarm operating time Control
This parameter sets the time that the alarm will operate when it is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 1 Minute |
| 1 | 1 | 5 Minutes |
| 2 | 2 | 10 Minutes |
| 3 | 3 | 15 Minutes |
| 4 | 4 | 20 Minutes |
4 - Alarm sound preview
This parameter provides a 3 second preview of the alarm sound. Use value -128 or hex value 0xFF.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -128 | Alarm operating (3 sec) |
1. Press & hold action button for 5 seconds when siren is in the excluded status 2. LED of siren will be on 5 seconds later 3. Siren will try inclusion for 1 minute when action button is released 4. LED will blink 3 times with 250ms interval if inclusion is successful
1. Press the action button for 5 seconds 2. Green LED is turned on after pressing 5 seconds of action button 3. Inclusion will be discontinued once the product is removed from the network 4. If the device is successfully excluded, the Green LED blinks 3 times
The device can be made to wake-up prior to the normal wake-up interval by pressing the action button.
1. Press the action button for 10 seconds 2. The Green LED is turned on after pressing 10 seconds of the action button 3. If the Device is removed (factory reset), the Green LED blinks 5 times ※ Please use this procedure only when the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
